C2838 - 2SC2838

📥 Download Datasheet

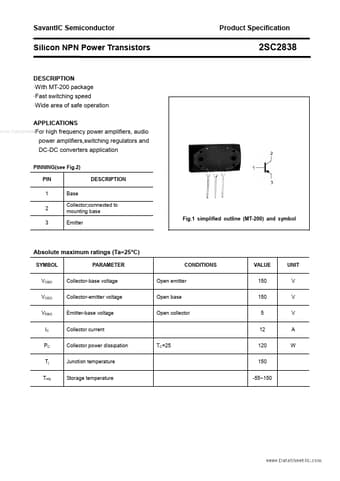

Preview of C2838 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number C2838
Manufacturer Savant
File Size 147.87 KB
Description 2SC2838
Datasheet download datasheet C2838_Savant.pdf

C2838 Product details

Description

With MT-200 package Fast switching speed Wide area of safe operation APPLICATIONS www.DataSheet4U.com For high frequency power amplifiers, audio power amplifiers,switching regulators and DC-DC converters application PINNING(see Fig.2) PIN 1 2 3 Base Collector;connected to mounting base Emitter Fig.1 simplified outline (MT-200) and symbol DESCRIPTION Absolute maximum ratings (Ta=25°C) SYMBOL VCBO VCEO VEBO IC PC Tj Tstg PARAMETER Collector-base voltage Collector-emitter volta
