C2810 Datasheet - SavantIC

2SC2810

C2810 General Description

With TO-220C package *High voltage,High speed APPLICATIONS *For power switching applications PINNING PIN 1 2 3 Base Collector;connected to mounting base Emitter DESCRIPTION Absolute maximum ratings(Ta=25 ) SYMBOL VCBO VCEO VEBO IC ICM PC Tj Tstg PARAMETER Collector-base voltage Collector-em.

C2810 Datasheet (135.04 KB)

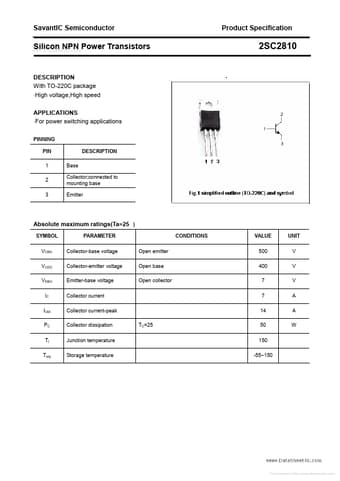

Preview of C2810 PDF

Datasheet Details

Part number:

C2810

Manufacturer:

SavantIC

File Size:

135.04 KB

Description:

2sc2810.
