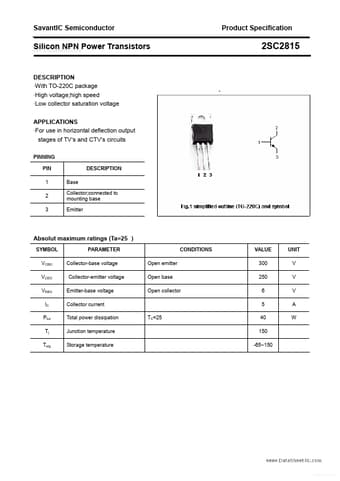

Preview of C2815 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number C2815
Manufacturer SavantIC
File Size 132.81 KB
Description 2SC2815
Datasheet download datasheet C2815-SavantIC.pdf

C2815 Product details

Description

With TO-220C package High voltage;high speed Low collector saturation voltage APPLICATIONS For use in horizontal deflection output stages of TV’s and CTV’s circuits PINNING PIN 1 2 3 Base Collector;connected to mounting base Emitter DESCRIPTION Absolut maximum ratings (Ta=25 ) SYMBOL VCBO VCEO VEBO IC Ptot Tj Tstg PARAMETER Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Total power dissipation Junction temperature Storage temperature
