ESD7410 Datasheet - ON Semiconductor

ESD7410 ESD Protection Diode

DATA SHEET www.onsemi.com ESD Protection Diode Ultra Low Capacitance Micro Packaged Diodes for ESD Protection ESD7410 The ESD7410 is designed to protect voltage sensitive components that require ultra low capacitance from ESD and transient voltage events. It has industry leading capacitance linearity over voltage making it ideal for RF applications. This capacitance linearity combined with the extremely small package and low insertion loss makes this part well suited f.

ESD7410 Features

* Ultra

* Low Capacitance: < 1.0 pF Max

* Industry Leading Capacitance Linearity Over Voltage

* Insertion Loss: 0.1 dB at 1 GHz; 0.3 dB at 3 GHz

* Low Leakage: < 1 mA

* IEC61000

* 4

* 2 (ESD): Level 4 ±30 kV Contact

* ISO 10605 (ESD)

ESD7410 Datasheet (370.39 KB)

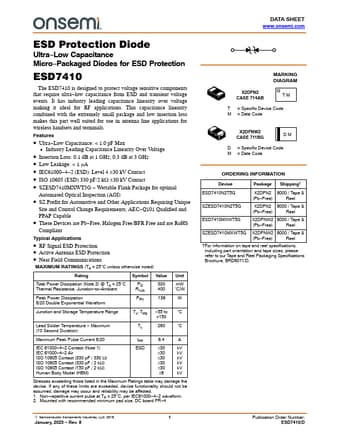

Preview of ESD7410 PDF
ESD7410 Datasheet Preview Page 2 ESD7410 Datasheet Preview Page 3

Datasheet Details

Part number:

ESD7410

Manufacturer:

ON Semiconductor ↗

File Size:

370.39 KB

Description:

Esd protection diode.
