ESD7461

Ultra-Low Capacitance ESD Protection

ESD7461 Features

* Industry Leading Capacitance Linearity Over Voltage

* Ultra

* Low Capacitance: 0.3 pF Typ

* Insertion Loss: 0.05 dB at 1 GHz; 0.21 dB at 3 GHz

* Low Leakage: < 1 nA

* Protection for the following IEC Standards:

* IEC61000

* 4

* 2 (E

ESD7461 General Description

below for more information. Transmission Line Pulse (TLP) Measurement Transmission Line Pulse (TLP) provides current versus voltage (I

*V) curves in which each data point is obtained from a 100 ns long rectangular pulse from a charged transmission line. A simplified schematic of a typical TL.

ESD7461 Datasheet (146.43 KB)

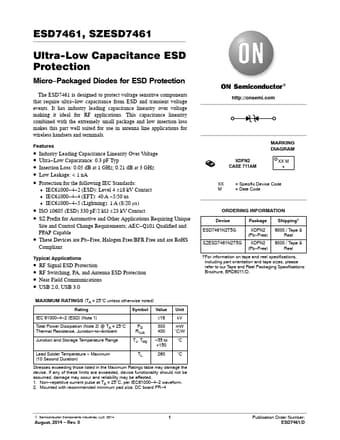

Preview of ESD7461 PDF

Datasheet Details

Part number:

ESD7461

Manufacturer:

ON Semiconductor ↗

File Size:

146.43 KB

Description:

Ultra-low capacitance esd protection.
ESD7461, SZESD7461 Ultra-Low Capacitance ESD Protection Micro

*Packaged Diodes for ESD Protection The ESD7461 is designed to protect voltage .
