ESD7421 ESD Protection Diodes

of survivability specs.  Semiconductor Components Industries, LLC, 2016 1 February, 2024 * Rev. 4 Publication Order Number: ESD7421/D ESD7421, SZESD7421 ELECTRICAL CHARACTERISTICS (TA = 25C unless otherwise noted) Symbol Parameter IPP Maximum Reverse Peak Pulse Current VC Clamp.

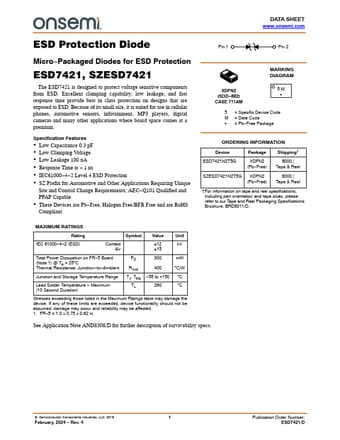

DATA SHEET www.onsemi.com ESD Protection Diode Micro Packaged Diodes for ESD Protection ESD7421, SZESD7421 The ESD7421 is designed to protect voltage sensitive components from ESD. Excellent clamping capability, low leakage, and fast response time provide best in class protection on designs that are exposed to ESD. Because of its small size, it is suited for use in cellular phones, automotive sensors, infotainment, MP3 players, digital cameras and many other applications where board spa.

ESD7421 Features

* Low Capacitance 0.3 pF

* Low Clamping Voltage

* Low Leakage 100 nA

* Response Time is < 1 ns

* IEC61000

* 4

* 2 Level 4 ESD Protection

* SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC

* Q101 Quali

ESD7421 Datasheet (246.79 KB)
