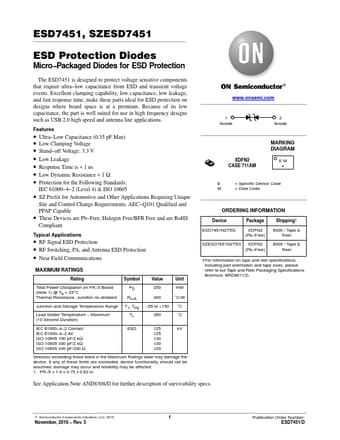

ESD7451, SZESD7451 ESD Protection Diodes Micro Packaged Diodes for ESD Protection The ESD7451 is designed to protect voltage sensitive components that require ultra low capacitance from ESD and transient voltage events. Excellent clamping capability, low capacitance, low leakage, and fast response time, make these parts ideal for ESD protection on designs where board space is at a premium. Because of its low capacitance, the part is well suited for use in high frequency designs.

ESD7451 Features

* Ultra

* Low Capacitance (0.35 pF Max)

* Low Clamping Voltage

* Stand

* off Voltage: 3.3 V

* Low Leakage

* Response Time is < 1 ns

* Low Dynamic Resistance < 1 W

* Protection for the Following Standards: IEC 61000

* 4

ESD7451 Datasheet (106.72 KB)
