FDB3652 - 100V 61A N-Channel MOSFET

Product Overview

ON Semiconductor

📥 Download Datasheet

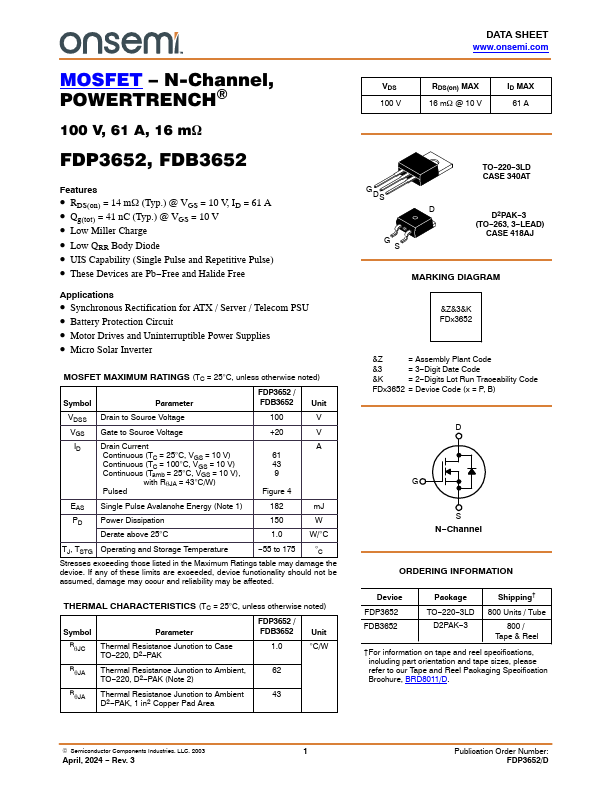

FDB3652 100V 61A N-Channel MOSFET by ON Semiconductor - Datasheet Preview — Datasheet preview – FDB3652

Datasheet Details

Part number	FDB3652
Manufacturer	ON Semiconductor
File Size	460.32 KB
Description	100V 61A N-Channel MOSFET
Datasheet	FDB3652 Datasheet

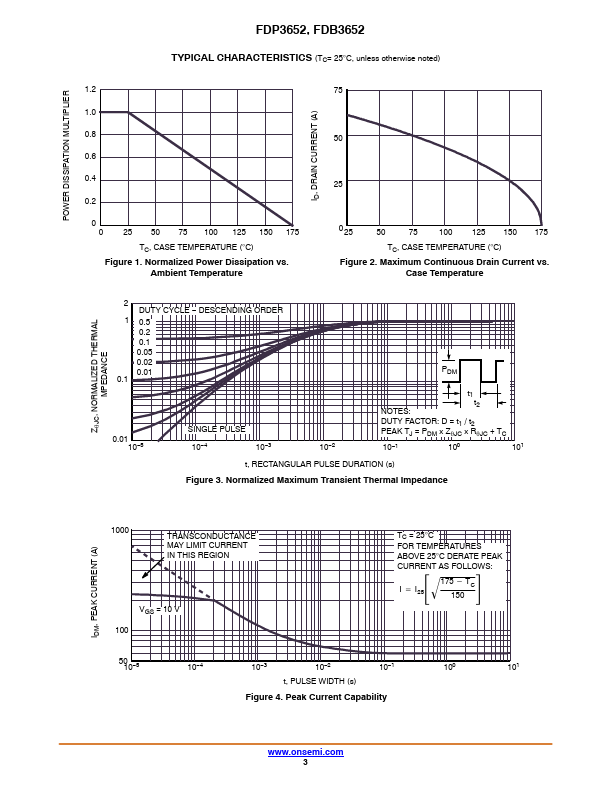

Additional preview pages of the FDB3652 datasheet.

Product details

Features

RDS(on) = 14 mW (Typ. ) @ VGS = 10 V, ID = 61 A.
Qg(tot) = 41 nC (Typ. ) @ VGS = 10 V.
Low Miller Charge.
Low QRR Body Diode.
UIS Capability (Single Pulse and Repetitive Pulse).
These Devices are Pb.
Free and Halide Free.
