FDBL86361-F085 - 80V 300A N-Channel MOSFET

Product Overview

ON Semiconductor

📥 Download Datasheet

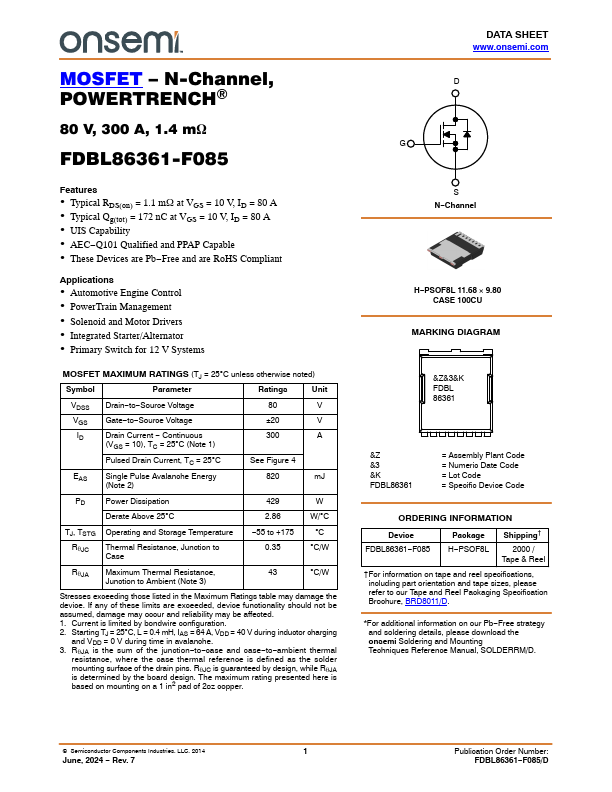

FDBL86361-F085 80V 300A N-Channel MOSFET by ON Semiconductor - Datasheet Preview — Datasheet preview – FDBL86361-F085

Datasheet Details

Part number	FDBL86361-F085
Manufacturer	ON Semiconductor
File Size	564.61 KB
Description	80V 300A N-Channel MOSFET
Datasheet	FDBL86361-F085 Datasheet

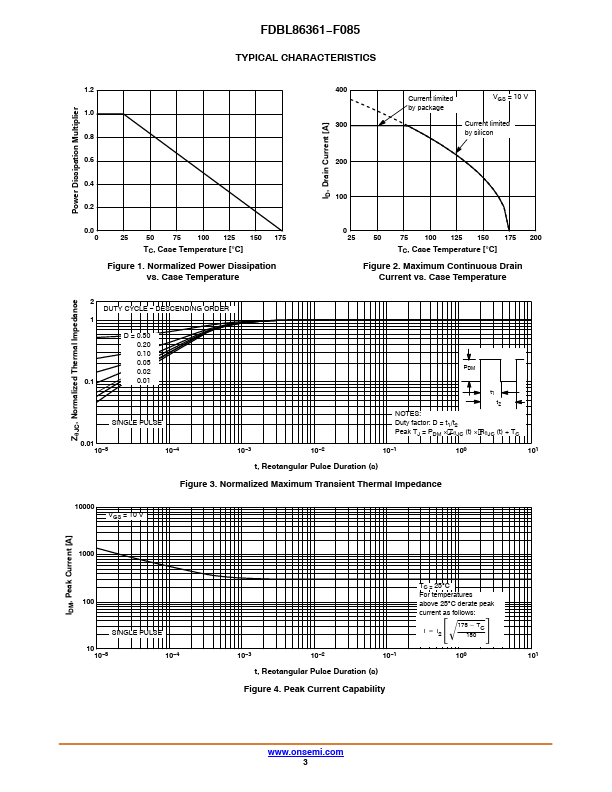

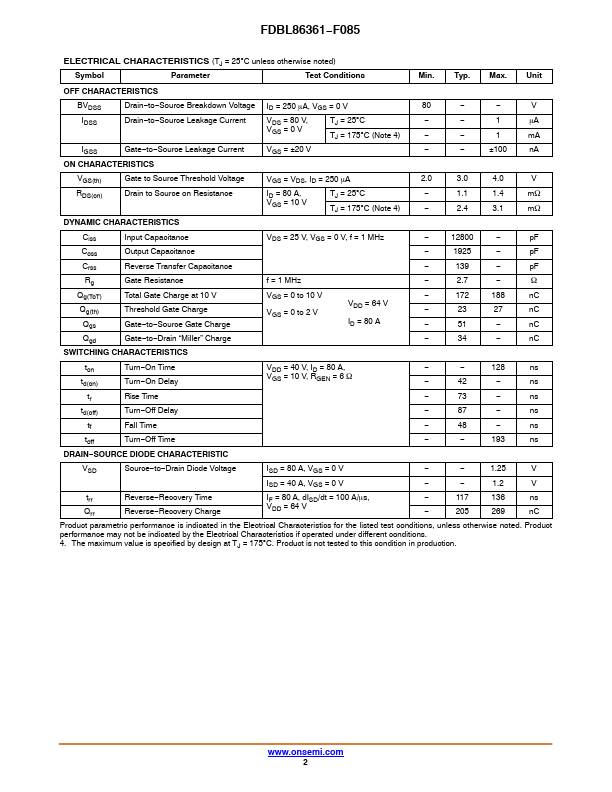

Additional preview pages of the FDBL86361-F085 datasheet.

Product details

Features

Typical RDS(on) = 1.1 mW at VGS = 10 V, ID = 80 A.
Typical Qg(tot) = 172 nC at VGS = 10 V, ID = 80 A.
UIS Capability.
AEC.
Q101 Qualified and PPAP Capable.
These Devices are Pb.
Free and are RoHS Compliant.
