FDBL86366-F085 - 80V 220A N-Channel MOSFET

Product Overview

ON Semiconductor

📥 Download Datasheet

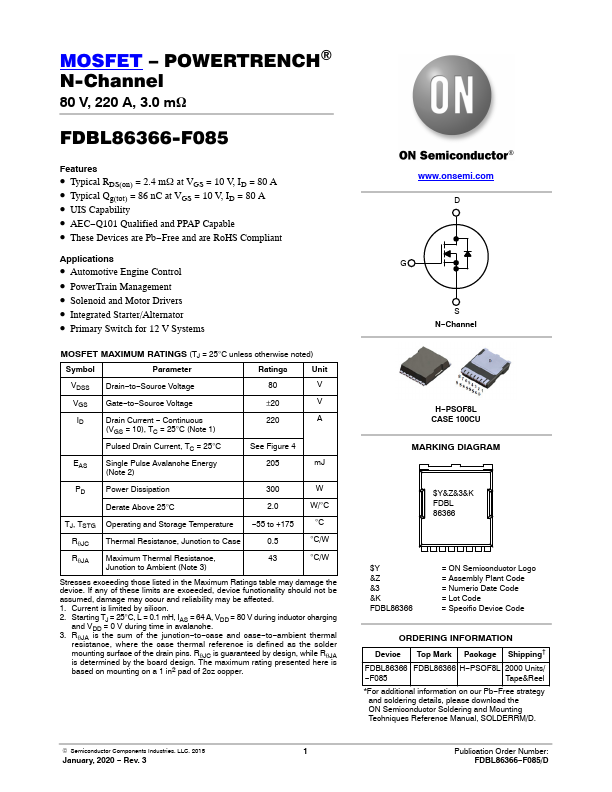

FDBL86366-F085 80V 220A N-Channel MOSFET by ON Semiconductor - Datasheet Preview — Datasheet preview – FDBL86366-F085

Datasheet Details

Part number	FDBL86366-F085
Manufacturer	ON Semiconductor
File Size	526.81 KB
Description	80V 220A N-Channel MOSFET
Datasheet	FDBL86366-F085 Datasheet

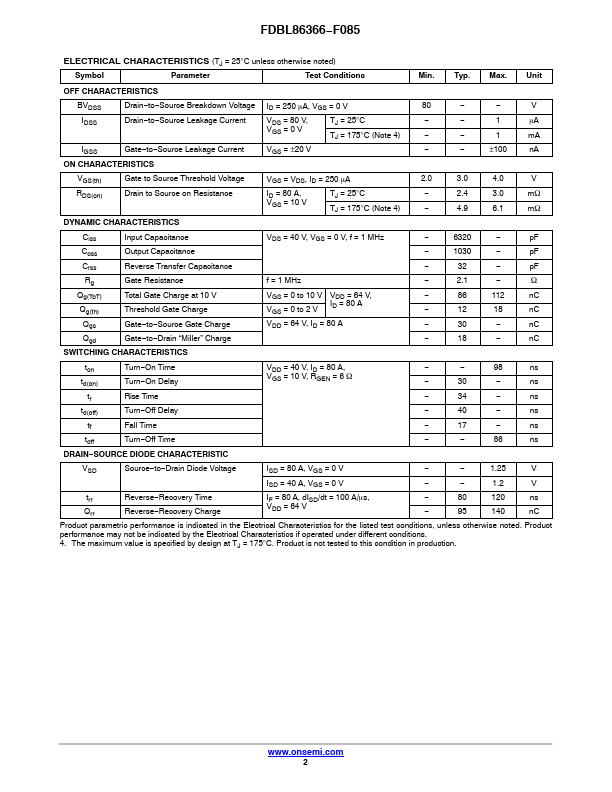

Additional preview pages of the FDBL86366-F085 datasheet.

Product details

Features

Typical RDS(on) = 2.4 mW at VGS = 10 V, ID = 80 A.
Typical Qg(tot) = 86 nC at VGS = 10 V, ID = 80 A.
UIS Capability.
AEC.
Q101 Qualified and PPAP Capable.
These Devices are Pb.
Free and are RoHS Compliant.
