FSL136HR

Green Mode Power Switch

FSL136HR Features

* Internal Avalanche

* Rugged SENSEFET (650 V)

* Under 50 mW Standby Power Consumption at 265 Vac, No

* load Condition with Burst Mode

* Precision Fixed Operating Frequency with Frequency Modulation for Attenuating EMI

* Internal Startup Circuit

FSL136HR General Description

The FSL136HR integrated Pulse Width Modulator (PWM) and SENSEFET® is specifically designed for high

*performance offline Switch

*Mode Power Supplies (SMPS) with minimal external components. FSL136HR includes integrated high

*voltage power switching regulators that combine an ava.

FSL136HR Datasheet (559.49 KB)

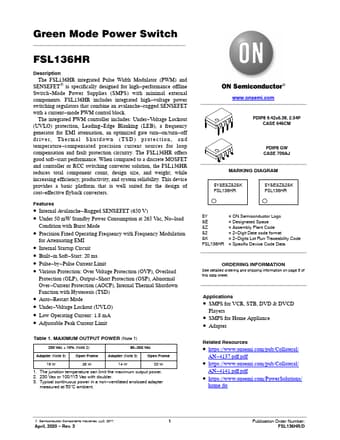

Preview of FSL136HR PDF

Datasheet Details

Part number:

FSL136HR

Manufacturer:

ON Semiconductor ↗

File Size:

559.49 KB

Description:

Green mode power switch.
