FSL137H - Green Mode Fairchild Power Switch

FSL137H Description

FSL137H * Green Mode Fairchild Power Switch (FPS™) August 2009 FSL137H Green Mode Fairchild Power Switch (FPS™) .
The highly integrated FSL137H consists of an integrated current mode Pulse Width Modulator (PWM) and an avalanche-rugged 700V SenseFET.

FSL137H Features

* Built-in 5ms Soft-Start Function Internal Avalanche Rugged 700V SenseFET Low Audio Noise High-Voltage Startup Fixed PWM Frequency at 100KHz Linearly Decreasing PWM Frequency to 18KHz Peak-Current-Mode Con

FSL137H Applications

* General-purpose switch-mode power supplies and flyback power converters, including:
* SMPS for VCR, SVR, STB, DVD & DVCD Player, Printer, Facsimile, & Scanner Adapter for Camcorder Ordering Information Part Number SenseFET FSL137HNY 3.0A 700V Operating Temperature Range -40°C to +105°C

📥 Download Datasheet

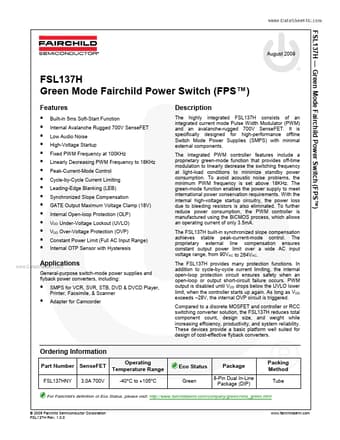

Preview of FSL137H PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
FSL137H
Manufacturer
Fairchild Semiconductor
File Size
572.73 KB
Datasheet
FSL137H_FairchildSemiconductor.pdf
Description
Green Mode Fairchild Power Switch
