FSL126HR - Green Mode Fairchild Power Switch

Datasheet Summary

Description

The FSL126HR integrated Pulse Width Modulator (PWM) and SenseFET is specifically designed for highperformance offline Switch-Mode Power Supplies (SMPS) with minimal external components.

Features

  • Internal Avalanche-Rugged SenseFET (650V) Under 50mW Standby Power Consumption at 265VAC, No-load Condition with Burst Mode Precision Fixed Operating Frequency with Frequency Modulation for Attenuating EMI Internal Startup Circuit Built-in Soft-Start: 20ms Pulse-by-Pulse Current Limiting Various Protections: Over-Voltage Protection (OVP), Overload Protection (OLP), Output-Short Protection (OSP), Abnormal Over-Current Protection (AOCP), Internal Thermal S.

📥 Download Datasheet

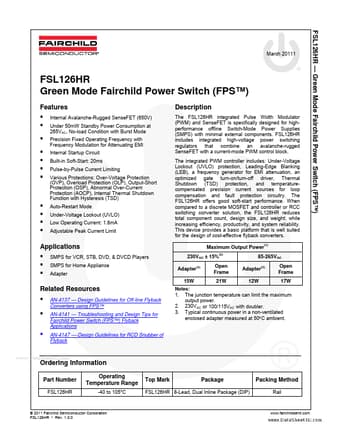

Datasheet preview – FSL126HR

Datasheet Details

Part number FSL126HR
Manufacturer Fairchild Semiconductor
File Size 972.81 KB
Description Green Mode Fairchild Power Switch
Datasheet download datasheet FSL126HR Datasheet
Additional preview pages of the FSL126HR datasheet.

📁 Similar Datasheet

  • FSL106HR - Green Mode Power Switch (ON Semiconductor)
  • FSL110D - N-Channel Power MOSFET (Intersil Corporation)
  • FSL110R - N-Channel Power MOSFET (Intersil Corporation)
  • FSL13 - Surface Mount Schottky Rectifier (GOOD-ARK)
  • FSL130D - N-Channel Power MOSFET (Intersil Corporation)
  • FSL130R - N-Channel Power MOSFET (Intersil Corporation)
  • FSL136HR - Green Mode Power Switch (ON Semiconductor)
  • FSL13A0D - N-Channel Power MOSFET (Intersil Corporation)
  • FSL13A0R - N-Channel Power MOSFET (Intersil Corporation)
  • FSL14 - Surface Mount Schottky Rectifier (GOOD-ARK)
Other Datasheets by Fairchild Semiconductor
  • FSL127H - Green Mode Fairchild Power Switch
  • FSL106HR - Green Mode Fairchild Power Switch
  • FSL106MR - Green Mode Fairchild Power Switch
  • FSL116HR - Green Mode Fairchild Power Switch
  • FSL136MR - Green Mode Fairchild Power Switch
  • FSL137H - Green Mode Fairchild Power Switch
  • FSL137MRIN - Green-Mode Fairchild Power Switch
  • FSL138MRT - Green-Mode Fairchild Power Switch

Full PDF Text Transcription

Click to expand full text
FSL126HR — Green Mode Fairchild Power Switch (FPS™) March 20111 FSL126HR Green Mode Fairchild Power Switch (FPS™) Features        Internal Avalanche-Rugged SenseFET (650V) Under 50mW Standby Power Consumption at 265VAC, No-load Condition with Burst Mode Precision Fixed Operating Frequency with Frequency Modulation for Attenuating EMI Internal Startup Circuit Built-in Soft-Start: 20ms Pulse-by-Pulse Current Limiting Various Protections: Over-Voltage Protection (OVP), Overload Protection (OLP), Output-Short Protection (OSP), Abnormal Over-Current Protection (AOCP), Internal Thermal Shutdown Function with Hysteresis (TSD) Auto-Restart Mode Under-Voltage Lockout (UVLO) Low Operating Current: 1.
