FSL106MR Datasheet PDF - Fairchild Semiconductor Green Mode Fairchild Power Switch Specs

FSL106MR - Green Mode Fairchild Power Switch

Datasheet Summary

Description

The FSL106MR integrated Pulse Width Modulator (PWM) and SenseFET is specifically designed for highperformance offline Switch-Mode Power Supplies (SMPS) with minimal external components.

Features

Internal Avalanche-Rugged SenseFET: 650V.
Under 50mW Standby Power Consumption at 265VAC, No-Load Condition with Burst Mode.
Precision Fixed Operating Frequency with Frequency Modulation for Attenuating EMI.
Internal Startup Circuit.
Built-in Soft-Start: 15ms.
Pulse-by-Pulse Current Limiting.
Various Protections: Over-Voltage Protection (OVP), Overload Protection (OLP), Output-Short Protection (OSP), Abnormal Over-Current Protection (AOCP), Internal Thermal Sh.

Datasheet Details

Part number	FSL106MR
Manufacturer	Fairchild Semiconductor
File Size	0.99 MB
Description	Green Mode Fairchild Power Switch
Datasheet	FSL106MR Datasheet
Additional preview pages of the FSL106MR datasheet.

📁 Similar Datasheet

FSL106HR - Green Mode Power Switch (ON Semiconductor)

FSL110D - N-Channel Power MOSFET (Intersil Corporation)

FSL110R - N-Channel Power MOSFET (Intersil Corporation)

FSL13 - Surface Mount Schottky Rectifier (GOOD-ARK)

FSL130D - N-Channel Power MOSFET (Intersil Corporation)

FSL130R - N-Channel Power MOSFET (Intersil Corporation)

FSL136HR - Green Mode Power Switch (ON Semiconductor)

FSL13A0D - N-Channel Power MOSFET (Intersil Corporation)

FSL13A0R - N-Channel Power MOSFET (Intersil Corporation)

FSL14 - Surface Mount Schottky Rectifier (GOOD-ARK)

Full PDF Text Transcription

Click to expand full text

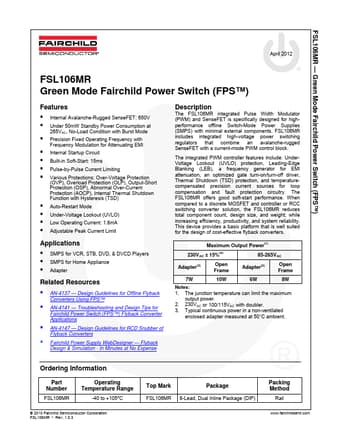

FSL106MR — Green Mode Fairchild Power Switch (FPS™) April 2012 FSL106MR Green Mode Fairchild Power Switch (FPS™) Features  Internal Avalanche-Rugged SenseFET: 650V  Under 50mW Standby Power Consumption at 265VAC, No-Load Condition with Burst Mode  Precision Fixed Operating Frequency with Frequency Modulation for Attenuating EMI  Internal Startup Circuit  Built-in Soft-Start: 15ms  Pulse-by-Pulse Current Limiting  Various Protections: Over-Voltage Protection (OVP), Overload Protection (OLP), Output-Short Protection (OSP), Abnormal Over-Current Protection (AOCP), Internal Thermal Shutdown Function with Hysteresis (TSD)  Auto-Restart Mode  Under-Voltage Lockout (UVLO)  Low Operating Current: 1.
