FSL116HR - Green Mode Fairchild Power Switch

Datasheet Summary

Description

The FSL116HR integrated Pulse Width Modulator (PWM) and SenseFET is specifically designed for highperformance offline Switched-Mode Power Supplies (SMPS) with minimal external components.

Features

  • Internal Avalanche-Rugged SenseFET (650V) Under 50mW Standby Power Consumption at 265VAC, No-load Condition with Burst Mode Precision Fixed Operating Frequency with Frequency Modulation for Attenuating EMI Internal Startup Circuit Built-in Soft-Start: 20ms Pulse-by-Pulse Current Limiting Various Protections: Over-Voltage Protection (OVP), Overload Protection (OLP), Output-Short Protection (OSP), Abnormal Over-Current Protection (AOCP), Internal Thermal S.

📥 Download Datasheet

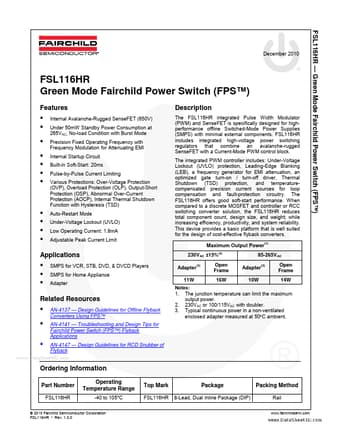

Datasheet preview – FSL116HR

Datasheet Details

Part number FSL116HR
Manufacturer Fairchild Semiconductor
File Size 894.60 KB
Description Green Mode Fairchild Power Switch
Datasheet download datasheet FSL116HR Datasheet
