FSL127H - Green Mode Fairchild Power Switch

Datasheet Summary

Description

The highly integrated FSL127H consists of a current mode Pulse Width Modulator (PWM) and an avalancherugged 700V SenseFET.

It is specifically designed for high-performance offline Switch Mode Power Supplies (SMPS) with minimal external components.

Features

  • Built-in 5ms Soft-Start Function Internal Avalanche-Rugged 700V SenseFET Low Audio Noise High-Voltage Startup Fixed PWM Frequency at 100KHz Linearly Decreasing PWM Frequency to 18KHz Peak-Current-Mode Control Cycle-by-Cycle Current Limiting Leading-Edge Blanking (LEB) Synchronized Slope Compensation Internal Open-Loop Protection (OLP) VDD Under-Voltage Lockout (UVLO) VDD Over-Voltage Protection (OVP) Consta.

📥 Download Datasheet

Datasheet preview – FSL127H

Datasheet Details

Part number FSL127H
Manufacturer Fairchild Semiconductor
File Size 1.54 MB
Description Green Mode Fairchild Power Switch
Datasheet download datasheet FSL127H Datasheet
Additional preview pages of the FSL127H datasheet.

📁 Similar Datasheet

  • FSL106HR - Green Mode Power Switch (ON Semiconductor)
  • FSL110D - N-Channel Power MOSFET (Intersil Corporation)
  • FSL110R - N-Channel Power MOSFET (Intersil Corporation)
  • FSL13 - Surface Mount Schottky Rectifier (GOOD-ARK)
  • FSL130D - N-Channel Power MOSFET (Intersil Corporation)
  • FSL130R - N-Channel Power MOSFET (Intersil Corporation)
  • FSL136HR - Green Mode Power Switch (ON Semiconductor)
  • FSL13A0D - N-Channel Power MOSFET (Intersil Corporation)
  • FSL13A0R - N-Channel Power MOSFET (Intersil Corporation)
  • FSL14 - Surface Mount Schottky Rectifier (GOOD-ARK)
Other Datasheets by Fairchild Semiconductor
  • FSL126HR - Green Mode Fairchild Power Switch
  • FSL106HR - Green Mode Fairchild Power Switch
  • FSL106MR - Green Mode Fairchild Power Switch
  • FSL116HR - Green Mode Fairchild Power Switch
  • FSL136MR - Green Mode Fairchild Power Switch
  • FSL137H - Green Mode Fairchild Power Switch
  • FSL137MRIN - Green-Mode Fairchild Power Switch
  • FSL138MRT - Green-Mode Fairchild Power Switch

Full PDF Text Transcription

Click to expand full text

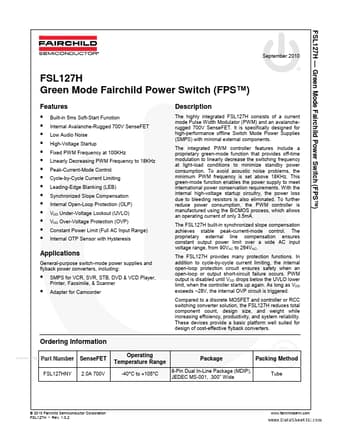

FSL127H — Green Mode Fairchild Power Switch (FPS™) September 2010 FSL127H Green Mode Fairchild Power Switch (FPS™) Features ƒ ƒ ƒ ƒ ƒ ƒ ƒ ƒ ƒ ƒ ƒ ƒ ƒ ƒ ƒ Built-in 5ms Soft-Start Function Internal Avalanche-Rugged 700V SenseFET Low Audio Noise High-Voltage Startup Fixed PWM Frequency at 100KHz Linearly Decreasing PWM Frequency to 18KHz Peak-Current-Mode Control Cycle-by-Cycle Current Limiting Leading-Edge Blanking (LEB) Synchronized Slope Compensation Internal Open-Loop Protection (OLP) VDD Under-Voltage Lockout (UVLO) VDD Over-Voltage Protection (OVP) Constant Power Limit (Full AC Input Range) Internal OTP Sensor with Hysteresis Description The highly integrated FSL127H consists of a current mode Pulse Width Modulator (PWM) and an avalancherugged 700V SenseFET.
