FSL110R - N-Channel Power MOSFET

Datasheet Summary

Features

  • 3.5A, 100V, rDS(ON) = 0.600Ω.
  • Total Dose - Meets Pre-RAD Specifications to 100K RAD (Si).
  • Single Event - Safe Operating Area Curve for Single Event Effects - SEE Immunity for LET of 36MeV/mg/cm2 with VDS up to 80% of Rated Breakdown and VGS of 10V Off-Bias.
  • Dose Rate - Typically Survives 3E9 RAD (Si)/s at 80% BVDSS - Typically Survives 2E12 if Current Limited to IDM.
  • Photo Current - 0.3nA Per-RAD(Si)/s Typically.
  • Neutron - Maintain Pre-RAD Sp.

📥 Download Datasheet

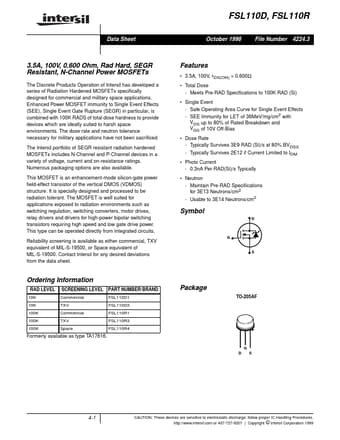

Datasheet preview – FSL110R

Datasheet Details

Part number FSL110R
Manufacturer Intersil Corporation
File Size 58.60 KB
Description N-Channel Power MOSFET
Datasheet download datasheet FSL110R Datasheet
Additional preview pages of the FSL110R datasheet.

📁 Similar Datasheet

  • FSL116HR - Green Mode Fairchild Power Switch (Fairchild Semiconductor)
  • FSL106HR - Green Mode Power Switch (ON Semiconductor)
  • FSL106HR - Green Mode Fairchild Power Switch (Fairchild Semiconductor)
  • FSL106MR - Green Mode Fairchild Power Switch (Fairchild Semiconductor)
  • FSL126HR - Green Mode Fairchild Power Switch (Fairchild Semiconductor)
  • FSL127H - Green Mode Fairchild Power Switch (Fairchild Semiconductor)
  • FSL13 - Surface Mount Schottky Rectifier (GOOD-ARK)
  • FSL136HR - Green Mode Power Switch (ON Semiconductor)
  • FSL136MR - Green Mode Fairchild Power Switch (Fairchild Semiconductor)
  • FSL137H - Green Mode Fairchild Power Switch (Fairchild Semiconductor)
Other Datasheets by Intersil Corporation
  • FSL110D - N-Channel Power MOSFET
  • FSL130D - N-Channel Power MOSFET
  • FSL130R - N-Channel Power MOSFET
  • FSL13A0D - N-Channel Power MOSFET
  • FSL13A0R - N-Channel Power MOSFET
  • FSL214D - Radiation Hardened/ SEGR Resistant N-Channel Power MOSFETs
  • FSL214R - Radiation Hardened/ SEGR Resistant N-Channel Power MOSFETs
  • FSL230D - N-Channel Power MOSFET

Full PDF Text Transcription

Click to expand full text
FSL110D, FSL110R Data Sheet October 1998 File Number 4224.3 3.5A, 100V, 0.600 Ohm, Rad Hard, SEGR Resistant, N-Channel Power MOSFETs The Discrete Products Operation of Intersil has developed a series of Radiation Hardened MOSFETs specifically designed for commercial and military space applications. Enhanced Power MOSFET immunity to Single Event Effects (SEE), Single Event Gate Rupture (SEGR) in particular, is combined with 100K RADS of total dose hardness to provide devices which are ideally suited to harsh space environments. The dose rate and neutron tolerance necessary for military applications have not been sacrificed. The Intersil portfolio of SEGR resistant radiation hardened MOSFETs includes N-Channel and P-Channel devices in a variety of voltage, current and on-resistance ratings.
