HCPL2531M, HCPL4503M Datasheet - ON Semiconductor

HCPL2531M 8-Pin DIP High Speed Transistor Optocoupler

The 6N135M, 6N136M, HCPL4503M, HCPL2530M, and HCPL2531M optocouplers consist of an AlGaAs LED optically coupled to a high speed photodetector transistor for each channel. A separate connection for the bias of the photodiode improves the speed by several orders of magnitude over conventional phototra.

HCPL2531M Features

* High Speed

* 1 MBit/s

* Dual

* Channel: HCPL2530M, HCPL2531M

* CTR Guaranteed 0°C to 70°C

* No Base Connection for Improved Noise Immunity (HCPL4503M)

* Superior CMR of 15,000 V/ms Minimum (HCPL4503M)

* Safety and Regulatory Approvals

HCPL4503M-ONSemiconductor.pdf

This datasheet PDF includes multiple part numbers: HCPL2531M, HCPL4503M. Please refer to the document for exact specifications by model.

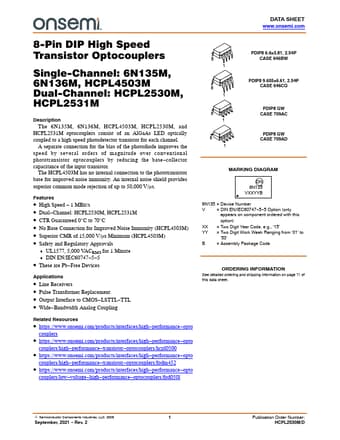

HCPL2531M Datasheet Preview Page 2 HCPL2531M Datasheet Preview Page 3

Datasheet Details

Part number:

HCPL2531M, HCPL4503M

Manufacturer:

ON Semiconductor ↗

File Size:

517.69 KB

Description:

8-pin dip high speed transistor optocoupler.

Note:

This datasheet PDF includes multiple part numbers: HCPL2531M, HCPL4503M.
Please refer to the document for exact specifications by model.
