HCPL2731M - Dual-Channel High Gain Split Darlington Optocouplers

Product Overview

ON Semiconductor

Datasheet Details

Part number	HCPL2731M
Manufacturer	ON Semiconductor
File Size	394.08 KB
Description	Dual-Channel High Gain Split Darlington Optocouplers
Datasheet	HCPL2731M Datasheet
Note	This datasheet PDF includes multiple part numbers: HCPL2731M, HCPL2730M. Please refer to the document for exact specifications by model.

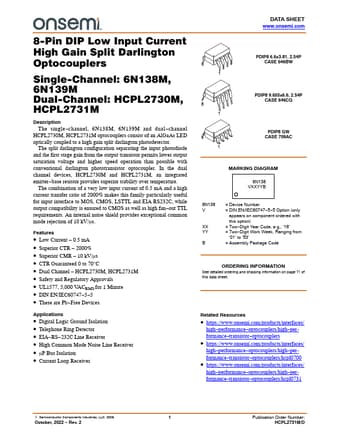

Additional preview pages of the HCPL2731M datasheet.

Product details

Description

The single channel, 6N138M, 6N139M and dual channel HCPL2730M, HCPL2731M optocouplers consist of an AlGaAs LED optically coupled to a high gain split darlington photodetector.The split darlington configuration separating the input photodiode and the first stage gain from the output transistor permits lower output saturation voltage and higher speed operation than possible with conventional darlington phototransistor optocoupler.In the dual channel devices, HCPL2730M and HCPL273

Features

Low Current.
0.5 mA.
Superior CTR.
2000%.
Superior CMR.
10 kV/ms.
CTR Guaranteed 0 to 70°C.
Dual Channel.
HCPL2730M, HCPL2731M.
Safety and Regulatory Approvals.
UL1577, 5,000 VACRMS for 1 Minute.
DIN EN/IEC60747.
5.
5.
These are Pb.
Free Devices.
