HCPL2731

Low Input Current High Gain Split Darlington Optocouplers

HCPL2731 Features

* Low current

* 0.5mA

* Superior CTR-2000%

* Superior CMR-10kV/µs

* CTR guaranteed 0

* 70°C

* U.L. recognized (File # E90700)

* VDE recognized (File # 120915) Ordering option V, tm Description The 6N138/9 and HCPL2730/HCPL2731 optocouplers consist of an AlGaAs

HCPL2731 General Description

The 6N138/9 and HCPL2730/HCPL2731 optocouplers consist of an AlGaAs LED optically coupled to a high gain split darlington photodetector. The split darlington configuration separating the input photodiode and the first stage gain from the output transistor permits lower output saturation voltage and hi.

HCPL2731 Datasheet (443.71 KB)

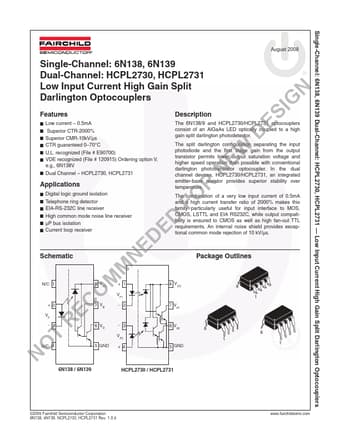

Preview of HCPL2731 PDF

Datasheet Details

Part number:

HCPL2731

Manufacturer:

Fairchild Semiconductor

File Size:

443.71 KB

Description:

Low input current high gain split darlington optocouplers.
Single-Channel: 6N138, 6N139 Dual-Channel: HCPL2730, HCPL2731 Low Input Current High Gain Split Darlington Optocouplers April 2007 Single-Channel: 6.
