MBD101G - Schottky Barrier Diodes

Features

  • Low Noise Figure.
  • 6.0 dB Typ @ 1.0 GHz.
  • Very Low Capacitance.
  • Less Than 1.0 pF.
  • High Forward Conductance.
  • 0.5 V (Typ) @ IF = 10 mA.
  • These Devices are Pb.
  • Free and are RoHS Compliant.

📥 Download Datasheet

Datasheet preview – MBD101G

Datasheet Details

Part number MBD101G
Manufacturer ON Semiconductor
File Size 216.60 KB
Description Schottky Barrier Diodes
Datasheet download datasheet MBD101G Datasheet
Additional preview pages of the MBD101G datasheet.

📁 Similar Datasheet

  • MBD101 - SILICON SCHOTTKY BARRIER DIODES (Motorola)
  • MBD101LT1 - SILICON SCHOTTKY BARRIER DIODES (Motorola)
  • MBD1057-C18 - Planar Back (Tunnel) Diodes (Aeroflex)
  • MBD110DWT1 - Dual SCHOTTKY Barrier Diodes (Leshan Radio Company)
  • MBD110DWT1 - Dual Schottky Barrier Diodes (Motorola)
  • MBD2057-C18 - Planar Back (Tunnel) Diodes (Aeroflex)
  • MBD3004SL - HIGH VOLTAGE SURFACE MOUNT SWITCHING DIODE (MSV)
  • MBD301 - 30 VOLTS SILICON HOT.CARRIER DETECTOR AND SWITCHING DIODES (Motorola)
  • MBD301 - Silicon Hot-Carrier Diodes Schottky Barrier Diodes (Leshan Radio)
  • MBD3057-C18 - Planar Back (Tunnel) Diodes (Aeroflex)
Other Datasheets by ON Semiconductor

Full PDF Text Transcription

Click to expand full text

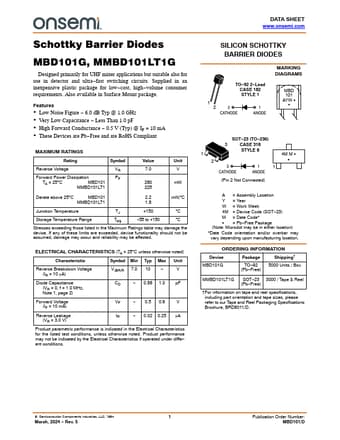

Schottky Barrier Diodes MBD101G, MMBD101LT1G Designed primarily for UHF mixer applications but suitable also for use in detector and ultra−fast switching circuits. Supplied in an inexpensive plastic package for low−cost, high−volume consumer requirements. Also available in Surface Mount package. Features  Low Noise Figure − 6.0 dB Typ @ 1.0 GHz  Very Low Capacitance − Less Than 1.0 pF  High Forward Conductance − 0.5 V (Typ) @ IF = 10 mA  These Devices are Pb−Free and are RoHS Compliant MAXIMUM RATINGS Rating Symbol Value Unit Reverse Voltage VR Forward Power Dissipation PF TA = 25C MBD101 MMBD101LT1 7.0 V 280 mW 225 Derate above 25C MBD101 MMBD101LT1 2.2 mW/C 1.
