MC100ELT23

Dual Differential PECL to TTL Translator

MC100ELT23 Features

* 3.5 ns Typical Propagation Delay

* 24 mA TTL Outputs

* Flow Through Pinouts

* The 100 Series Contains Temperature Compensation

* Operating Range VCC = 4.75 V to 5.25 V with GND = 0 V

* Internal Input 50 KW Pulldown Resistors

* These Devices a

MC100ELT23 General Description

The MC100ELT23 is a dual differential PECL to TTL translator. Because PECL (Positive ECL) levels are used, only +5 V and ground are required. The small outline 8-lead package and the dual gate design of the ELT23 makes it ideal for applications which require the translation of a clock and a data sig.

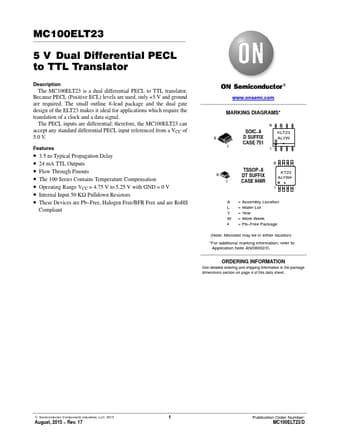

MC100ELT23 Datasheet (74.12 KB)

Preview of MC100ELT23 PDF

Datasheet Details

Part number:

MC100ELT23

Manufacturer:

ON Semiconductor ↗

File Size:

74.12 KB

Description:

Dual differential pecl to ttl translator.
