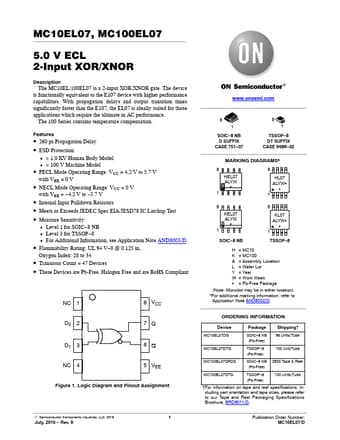

MC100EL07 Datasheet, xor/xnor equivalent, ON Semiconductor

MC100EL07 Features

• Xor/xnor
• 260 ps Propagation Delay
• ESD Protection:
• > 1.0 KV Human Body Model
• > 100 V Machine Model
• PECL Mode Operating Range: VCC = 4.2 V to 5.7

PDF File Details

Part number:

MC100EL07

Manufacturer:

ON Semiconductor ↗

File Size:

144.03kb

Download:

📄 Datasheet

Description:

2-input xor/xnor. The MC10EL/100EL07 is a 2-input XOR/XNOR gate. The device is functionally equivalent to the E107 device with higher performance capab

MC100EL07 Application

• Applications which require the ultimate in AC performance. The 100 Series contains temperature compensation. Features
• 260 ps Propagation D
