MC100EL11

1:2 Differential Fanout Buffer

MC100EL11 Features

* 265 ps Propagation Delay

* 5 ps Skew Between Outputs

* PECL Mode Operating Range: VCC = 4.2 V to 5.7 with VEE = 0 V

* NECL Mode Operating Range: VCC = 0 V with VEE =

* 4.2 V to

* 5.7 V

* Internal Input Pulldown Resistors

* These Devices

MC100EL11 General Description

PIN FUNCTION D, D Q0, Q0; Q1, Q.

MC100EL11 Datasheet (150.28 KB)

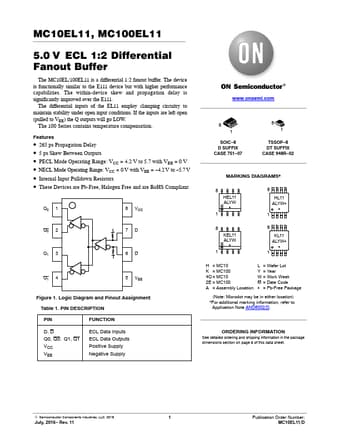

Preview of MC100EL11 PDF

Datasheet Details

Part number:

MC100EL11

Manufacturer:

ON Semiconductor ↗

File Size:

150.28 KB

Description:

1:2 differential fanout buffer.
MC10EL11, MC100EL11 5.0 V ECL 1:2 Differential Fanout Buffer The MC10EL/100EL11 is a differential 1:2 fanout buffer. The device is functionally simil.
