MC14025B CMOS Gates

Quad 2 *Input NOR Gate Quad 2 *Input NAND Gate Triple 3 *Input NAND Gate Triple 3 *Input NOR Gate Quad 2 *Input OR Gate Triple 3 *Input AND Gate MC14081B MC14082B Quad 2 *Input AND Gate Dual 4 *Input AND Gate ORDERING INFORMATION See detaile.

MC14025B Features

* Supply Voltage Range = 3.0 Vdc to 18 Vdc

* All Outputs Buffered

* Capable of Driving Two Low

* power TTL Loads or One Low

* power Schottky TTL Load Over the Rated Temperature Range.

* Double Diode Protection on All Inputs Except: Triple Diode Protection on MC14011B and

MC14025B Datasheet (264.93 KB)

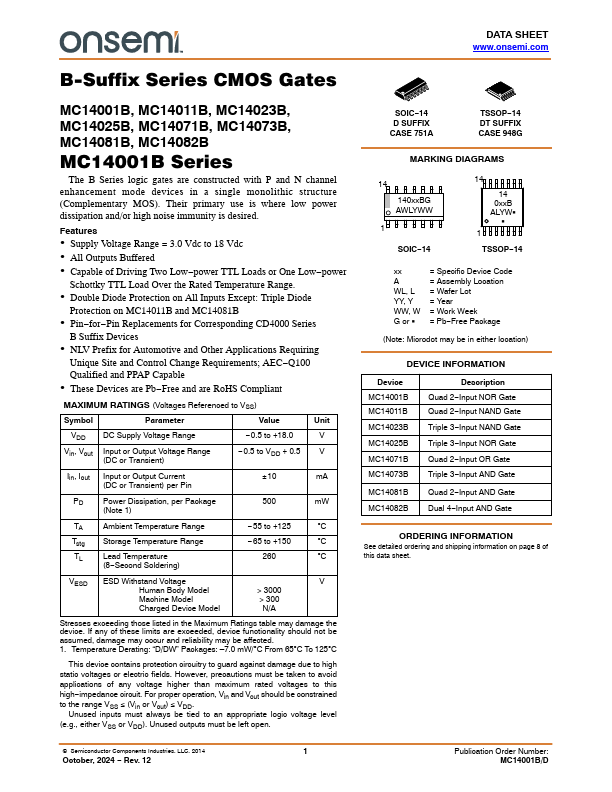

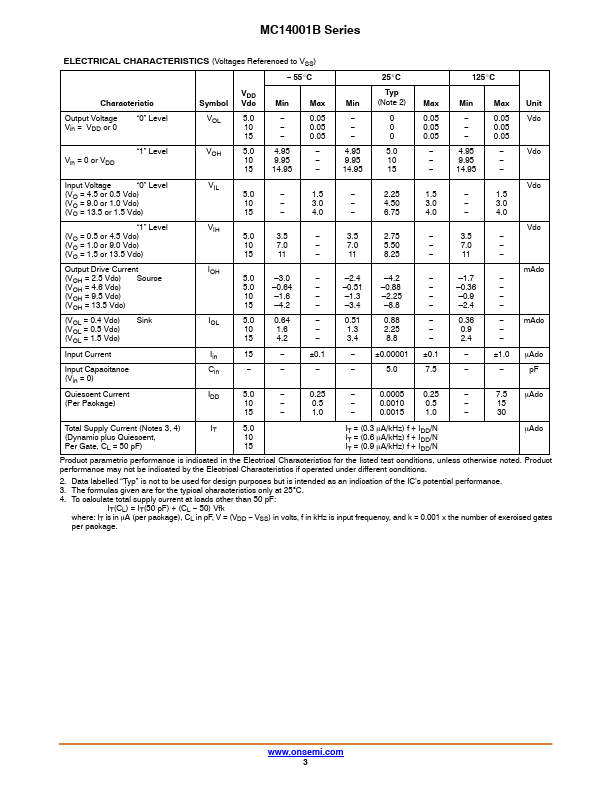

MC14025B Datasheet Preview — Preview of MC14025B PDF

Datasheet Details

Part number:

MC14025B

Manufacturer:

ON Semiconductor ↗

File Size:

264.93 KB

Description:

Cmos gates.
