MC14042B

Quad Transparent Latch

MC14042B Features

* Buffered Data Inputs

* Common Clock

* Clock Polarity Control

* Q and Q Outputs

* Double Diode Input Protection

* Supply Voltage Range = 3.0 Vdc to 1 8 Vdc

* Capable of Driving Two Low

* power TTL Loads or One Low

* power Schottky

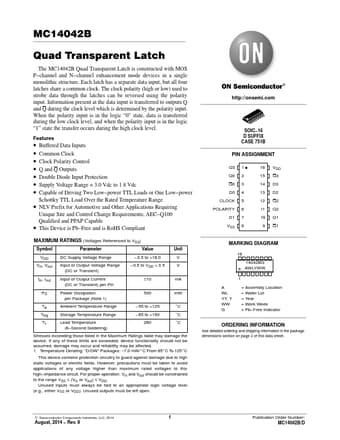

MC14042B Datasheet (95.42 KB)

Preview of MC14042B PDF

Datasheet Details

Part number:

MC14042B

Manufacturer:

ON Semiconductor ↗

File Size:

95.42 KB

Description:

Quad transparent latch.
MC14042B Quad Transparent Latch The MC14042B Quad Transparent Latch is constructed with MOS P

*channel and N

*channel enhancement mode.
