MC14049UB Datasheet - ON Semiconductor

MC14049UB - Hex Buffers

Hex Buffers MC14049UB The MC14049UB hex inverter/buffer is constructed with MOS P channel and N channel enhancement mode devices in a single monolithic structure.

This complementary MOS device finds primary use where low power dissipation and/or high noise immunity is desired.

This device provides logic level conversion using only one supply voltage, VDD.

The input signal high level (VIH) can exceed the VDD supply voltage for logic level conversions.

Two

MC14049UB Features

* High Source and Sink Currents

* High

* to

* Low Level Converter

* Supply Voltage Range = 3.0 V to 18 V

* Meets JEDEC UB Specifications

* VIN can exceed VDD

* Improved ESD Protection on All Inputs

* These Devices are Pb

* Fre

MC14049UB-ONSemiconductor.pdf

Preview of MC14049UB PDF

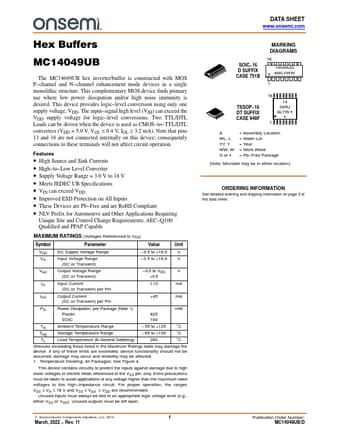

MC14049UB Datasheet Preview Page 2 MC14049UB Datasheet Preview Page 3

Datasheet Details

Part number:

MC14049UB

Manufacturer:

ON Semiconductor ↗

File Size:

195.55 KB

Description:

Hex buffers.
