MC14082B Datasheet - ON Semiconductor

CMOS Gates

MC14082B Features

* Supply Voltage Range = 3.0 Vdc to 18 Vdc

* All Outputs Buffered

* Capable of Driving Two Low

* power TTL Loads or One Low

* power Schottky TTL Load Over the Rated Temperature Range.

* Double Diode Protection on All Inputs Except: Triple Diode Protection on MC14011B and

MC14082B General Description

Quad 2 *Input NOR Gate Quad 2 *Input NAND Gate Triple 3 *Input NAND Gate Triple 3 *Input NOR Gate Quad 2 *Input OR Gate Triple 3 *Input AND Gate MC14081B MC14082B Quad 2 *Input AND Gate Dual 4 *Input AND Gate ORDERING INFORMATION See detaile.

MC14082B Datasheet (264.93 KB)

Preview of MC14082B PDF

Datasheet Details

Part number:

MC14082B

Manufacturer:

ON Semiconductor ↗

File Size:

264.93 KB

Description:

Cmos gates.

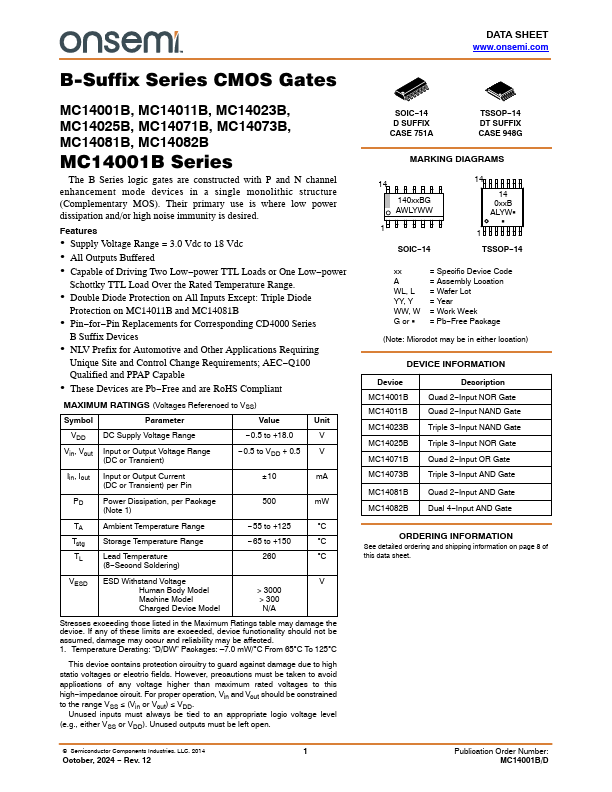

DATA SHEET www.onsemi.com B-Suffix Series CMOS Gates MC14001B, MC14011B, MC14023B, MC14025B, MC14071B, MC14073B, MC14081B, MC14082B MC14001B Series.

📁 Related Datasheet

MC14082B B-Suffix Series CMOS Gates (Motorola)

MC1408 8-bit multiplying D/A converter (NXP)

MC1408 8-Bit Multiplying Digital to Analog Converter (Motorola)

MC1408-8 8-bit multiplying D/A converter (NXP)

MC1408-8 8-bit Multiplying D/A Converter (ON Semiconductor)

MC14081B B-Suffix Series CMOS Gates (Motorola)

MC14081B CMOS Gates (ON Semiconductor)

MC1400 (MC1500 / MC1400) Laser Trimmed Silicon Monolithic Integrated Circuit (Motorola)

MC14000UB Dual 3-Input NOR Gate Plus Inverter (Motorola)

MC14001B B-Suffix Series CMOS Gates (Motorola)

Stock and price

Distributor
SPC Multicomp
MCMF0W4FF3902A50
4650 In Stock
Qty : 2000 units
Unit Price : $0.01

TAGS

MC14082B CMOS Gates ON Semiconductor

Image Gallery

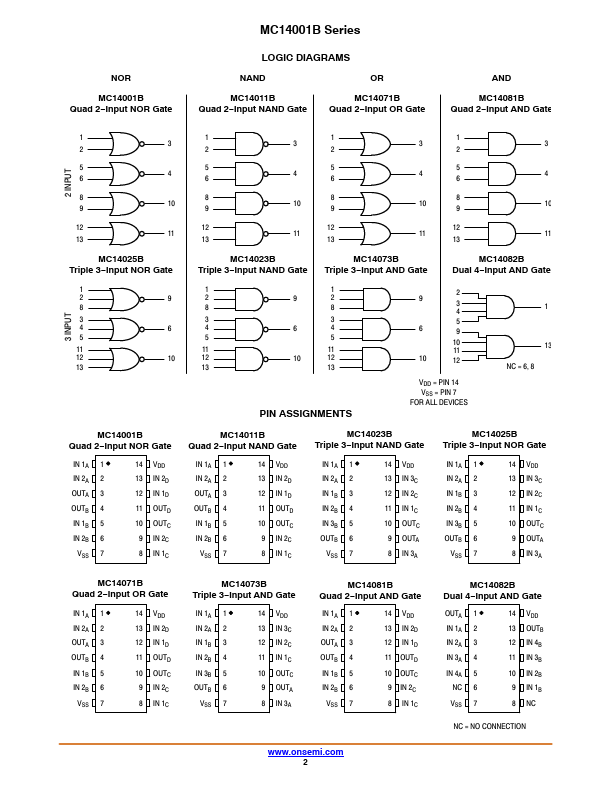

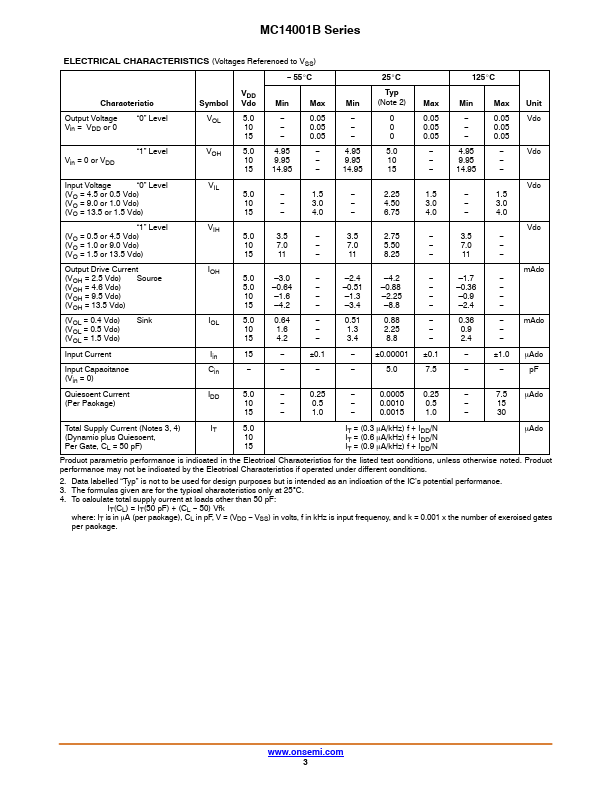

MC14082B Datasheet Preview Page 2 MC14082B Datasheet Preview Page 3
