MMBTA42LT1G - High Voltage Transistors

Features

These Devices are Pb.
Free, Halogen Free/BFR Free and are RoHS Compliant.

onsemi

Datasheet Details

Part number	MMBTA42LT1G
Manufacturer	onsemi
File Size	98.67 KB
Description	High Voltage Transistors
Datasheet	MMBTA42LT1G Datasheet
Additional preview pages of the MMBTA42LT1G datasheet.

📁 Similar Datasheet

MMBTA42LT1 - High Voltage Transistors (Motorola)
MMBTA42 - Surface mount High Voltage Transistors (Diotec)
MMBTA42 - NPN High Voltage Amplifier (GME)
MMBTA42 - Silicon NPN transistor (BLUE ROCKET ELECTRONICS)
MMBTA42 - NPN Transistor (HOTTECH)
MMBTA42 - NPN Transistors (Kexin)
MMBTA42 - General Purpose NPN Silicon Transistor (SeCoS)
MMBTA42 - High-Voltage NPN Transistor (WEITRON)
MMBTA42 - NPN Transistor (Rectron)
MMBTA42 - NPN Silicon High Voltage Transistors (SEMTECH)

Other Datasheets by ON Semiconductor

MMBTA42L - High Voltage Transistors
MMBTA43L - High Voltage Transistors
MMBTA43LT1G - High Voltage Transistors
MMBTA05L - Driver Transistors
MMBTA06L - Driver Transistors
MMBTA06W - Driver Transistor
MMBTA06WT1 - NPN Transistor
MMBTA13L - Darlington Amplifier Transistors

Full PDF Text Transcription

Click to expand full text

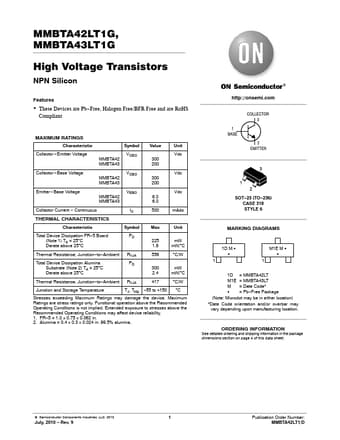

MMBTA42LT1G, MMBTA43LT1G High Voltage Transistors NPN Silicon Features • These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant MAXIMUM RATINGS Characteristic Symbol Value Unit Collector −Emitter Voltage VCEO Vdc MMBTA42 300 MMBTA43 200 Collector −Base Voltage MMBTA42 MMBTA43 VCBO 300 200 Vdc Emitter −Base Voltage VEBO Vdc MMBTA42 6.0 MMBTA43 6.0 Collector Current − Continuous THERMAL CHARACTERISTICS Characteristic IC 500 Symbol Max mAdc Unit Total Device Dissipation FR−5 Board (Note 1) TA = 25°C Derate above 25°C PD 225 mW 1.8 mW/°C Thermal Resistance, Junction−to−Ambient Total Device Dissipation Alumina Substrate (Note 2) TA = 25°C Derate above 25°C RqJA PD 556 °C/W 300 mW 2.
