MOC8021M - 6-Pin DIP Photodarlington Optocoupler

Features

  • High BVCEO:.
  • Minimum 50 V (MOC8021M).
  • Minimum 80 V (MOC8050M).
  • High Current Transfer Ratio:.
  • Minimum 1000% (MOC8021M).
  • Minimum 500% (MOC8050M).
  • No Base Connection for Improved Noise Immunity.
  • Safety and Regulatory Approvals:.
  • UL1577, 4,170 VACRMS for 1 Minute.
  • DIN.
  • EN/IEC60747.
  • 5.
  • 5, 850 V Peak Working Insulation Voltage.
  • These are Pb.
  • Free Devices.

📥 Download Datasheet

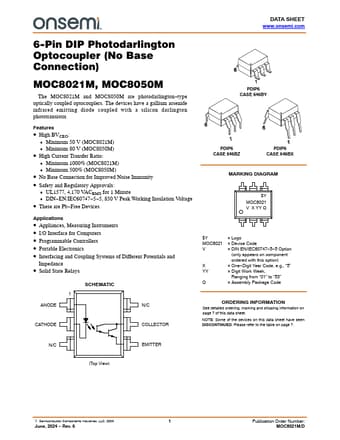

Datasheet preview – MOC8021M

Datasheet Details

Part number MOC8021M
Manufacturer ON Semiconductor
File Size 363.17 KB
Description 6-Pin DIP Photodarlington Optocoupler
Datasheet download datasheet MOC8021M Datasheet
