MPSA56, MPSA05 Datasheet - ON Semiconductor

MPSA56 Amplifier Transistors

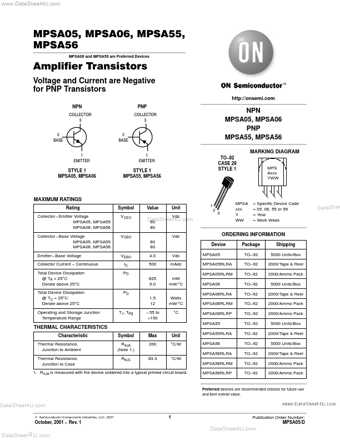

www.DataSheet4U.com MPSA05, MPSA06, MPSA55, MPSA56 MPSA06 and MPSA56 are Preferred Devices Amplifier Transistors Voltage and Current are Negative for PNP Transistors http://onsemi.com NPN COLLECTOR 3 2 BASE 1 EMITTER STYLE 1 MPSA05, MPSA06 2 BASE 1 EMITTER STYLE 1 MPSA55, MPSA56 PNP COLLECTOR 3 NPN MPSA05, MPSA06 PNP MPSA55, MPSA56 MARKING DIAGRAM TO 92 CASE 29 STYLE 1 MPS Axxx YWW MAXIMUM RATINGS Rating Collector Emitter Voltage MPSA05, MPSA55 MPSA06, MPSA56 Collector <.

MPSA56 Features

* 11 ISSUE AL A R P L SEATING PLANE B NOTES: 1. DIMENSIONING AND TOLERANCING PER ANSI Y14.5M, 1982. 2. CONTROLLING DIMENSION: INCH. 3. CONTOUR OF PACKAGE BEYOND DIMENSION R IS UNCONTROLLED. 4. LEAD DIMENSION IS UNCONTROLLED IN P AND BEYOND DIMENSION K MINIMUM. INCHES MIN MAX 0.175 0.205 0.170 0.210

MPSA05_ONSemiconductor.pdf

This datasheet PDF includes multiple part numbers: MPSA56, MPSA05. Please refer to the document for exact specifications by model.
MPSA56 Datasheet Preview Page 2 MPSA56 Datasheet Preview Page 3

Datasheet Details

Part number:

MPSA56, MPSA05

Manufacturer:

ON Semiconductor ↗

File Size:

312.77 KB

Description:

Amplifier transistors.

Note:

This datasheet PDF includes multiple part numbers: MPSA56, MPSA05.
Please refer to the document for exact specifications by model.
