NB3L02 Datasheet - ON Semiconductor

NB3L02 High Precision 1:2 Clock Fanout Buffer

The NB3L02 is a low *skew, low jitter 1:2 clock fanout buffer, ideal for use in portable end *equipment, such as mobile phones or tablet applications. The MCLK_IN pin has an integrated AC coupling capacitor and will directly accept a square or sine wave clock input, such as a temperatu.

NB3L02 Features

* 800 mV Single Ended Outputs

* Low Phase Noise:

* 144 dbc/Hz @ 10 kHz Offset

* Ultra Small Package: 0.4 mm Pitch WLCSP6 (0.77 mm x 1.17 mm)

* Exceeds JEDEC ESD Standards: 4000 V HBM, 200 V MM

* Industrial Temperature Range:

* 40°C to +85°C

NB3L02-ONSemiconductor.pdf

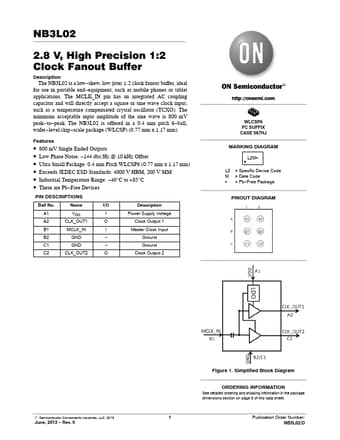

Preview of NB3L02 PDF
NB3L02 Datasheet Preview Page 2 NB3L02 Datasheet Preview Page 3

Datasheet Details

Part number:

NB3L02

Manufacturer:

ON Semiconductor ↗

File Size:

192.33 KB

Description:

High precision 1:2 clock fanout buffer.
