NB3L208K - 2.5V / 3.3V Differential 1:8 HCSL Fanout Buffer

Product Overview

ON Semiconductor

Datasheet Details

Part number	NB3L208K
Manufacturer	ON Semiconductor
File Size	125.94 KB
Description	2.5V / 3.3V Differential 1:8 HCSL Fanout Buffer
Datasheet	NB3L208K Datasheet

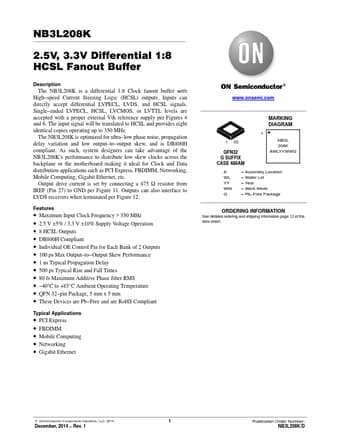

Additional preview pages of the NB3L208K datasheet.

Product details

Description

The NB3L208K is a differential 1:8 Clock fanout buffer with High speed Current Steering Logic (HCSL) outputs. ended LVPECL, HCSL, LVCMOS, or LVTTL levels are accepted with a proper external Vth reference supply per Figures 4 and 6. low phase noise, propaga

Features

Maximum Input Clock Frequency > 350 MHz.
2.5 V ±5% / 3.3 V ±10% Supply Voltage Operation.
8 HCSL Outputs.
DB800H Compliant.
Individual OE Control Pin for Each Bank of 2 Outputs.
100 ps Max Output.
to.
Output Skew Performance.
1 ns Typical Propagation Delay.
500 ps Typical Rise and Fall Times.
80 fs Maximum Additive Phase Jitter RMS.
40°C to +85°C Ambient Operating Temperature.
