NB3L553 - 2.5V / 3.3V / 5.0V 1:4 Clock Fanout Buffer

Product Overview

ON Semiconductor

Datasheet Details

Part number	NB3L553
Manufacturer	ON Semiconductor
File Size	273.40 KB
Description	2.5V / 3.3V / 5.0V 1:4 Clock Fanout Buffer
Datasheet	NB3L553 Datasheet

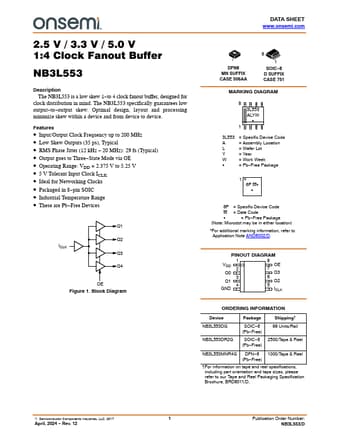

Additional preview pages of the NB3L553 datasheet.

Product details

Description

The NB3L553 is a low skew 1 to 4 clock fanout buffer, designed for clock distribution in mind.The NB3L553 specifically guarantees low output to output skew.

Features

Input/Output Clock Frequency up to 200 MHz.
Low Skew Outputs (35 ps), Typical.
RMS Phase Jitter (12 kHz.
20 MHz): 29 fs (Typical).
Output goes to Three.
State Mode via OE.
Operating Range: VDD = 2.375 V to 5.25 V.
5 V Tolerant Input Clock ICLK.
Ideal for Networking Clocks.
Packaged in 8.
pin SOIC.
Industrial Temperature Range.
These are Pb.
Free Devices Q1 Q2 ICLK Q3 Q4 OE Fig.
