NB3L83948C

2.5V / 3.3V Differential and LVTTL/LVCMOS 2:1 MUX to 1:12 LVCMOS

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
Distributor onsemi NB3L83948CFAG Clock Buffer, Fanout, 350 MHz to 12 Outputs, 3.135 V to 3.465 V, 32 Pins, LQFP - Trays (Alt: NB3L83948CFAG) Avnet Americas 0 0
$0

NB3L83948C Datasheet (79.28 KB)

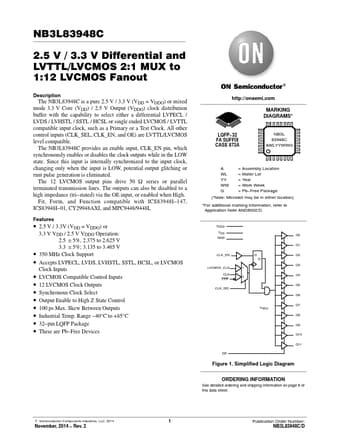

Preview of NB3L83948C PDF

Datasheet Details

Part number:

NB3L83948C

Manufacturer:

ON Semiconductor ↗

File Size:

79.28 KB

Description:

2.5v / 3.3v differential and lvttl/lvcmos 2:1 mux to 1:12 lvcmos.

NB3L83948C Features

* 2.5 V / 3.3V (VDD = VDDO) or 3.3 V VDD / 2.5 V VDDO Operation: 2.5 $5%, 2.375 to 2.625 V 3.3 $5%; 3.135 to 3.465 V

* 350 MHz Clock Support

* Accepts LVPECL, LVDS, LVHSTL, SSTL, HCSL, or LVCMOS Clock Inputs

* LVCMOS Compatible Control Inputs

* 12 LVCMOS Clock

NB3L83948C General Description

The NB3L83948C is a pure 2.5 V / 3.3 V (VDD = VDDO) or mixed mode 3.3 V Core (VDD) / 2.5 V Output (VDDO) clock distribution buffer with the capability to select either a differential LVPECL / LVDS / LVHSTL / SSTL / HCSL or single ended LVCMOS / LVTTL compatible input clock, such as a Primary or a Te.
