NB3L8533

2.5V/3.3V Differential 2:1 MUX to 4 LVPECL Fanout Buffer

NB3L8533 Features

* a multiplexed input which can be driven by either a differential or single

* ended input to allow for the distribution of a lower speed clock along with the high speed system clock. The CLK_SEL pin will select the differential clock inputs, CLK and CLK, when LOW (or left open and pulled LOW by

NB3L8533 Datasheet (151.17 KB)

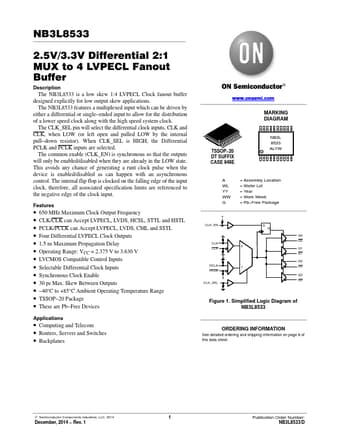

Preview of NB3L8533 PDF

Datasheet Details

Part number:

NB3L8533

Manufacturer:

ON Semiconductor ↗

File Size:

151.17 KB

Description:

2.5v/3.3v differential 2:1 mux to 4 lvpecl fanout buffer.
