NB3L853141 - 2.5V/3.3V 1:5 LVPECL Fanout Buffer

Product Overview

ON Semiconductor

Part number	NB3L853141
Manufacturer	ON Semiconductor
File Size	108.23 KB
Description	2.5V/3.3V 1:5 LVPECL Fanout Buffer
Datasheet	NB3L853141 Datasheet
Additional preview pages of the NB3L853141 datasheet.

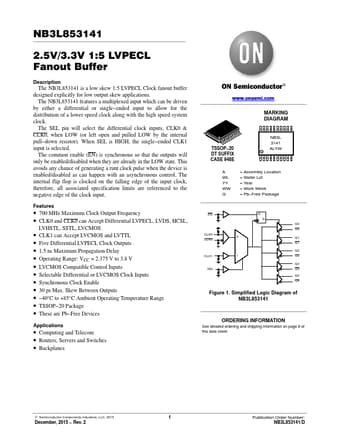

The NB3L853141 is a low skew 1:5 LVPECL Clock fanout buffer designed explicitly for low output skew applications.The NB3L853141

a multiplexed input which can be driven by either a differential or single.
ended input to allow for the distribution of a lower speed clock along with the high speed system clock. The SEL pin will select the differential clock inputs, CLK0 & CLK0, when LOW (or left open and pulled LOW by the internal pull.
down resistor). When SEL is HIGH, the single.
ended CLK1 input is selected. The common enable (EN) is synchronous so that the outputs will only be enabled/disabled when t.
