NB3L8504S

2.5V / 3.3V 1:4 Differential Input to LVDS Fanout Buffer / Translator

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
Distributor onsemi NB3L8504SDTG IC CLK BUFFER 1:4 700MHZ 16TSSOP DigiKey 76 576 units
$3.68

NB3L8504S Datasheet (246.12 KB)

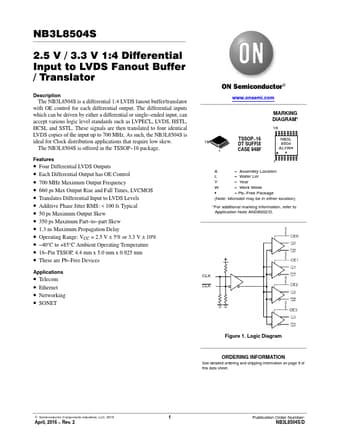

Preview of NB3L8504S PDF

Datasheet Details

Part number:

NB3L8504S

Manufacturer:

ON Semiconductor ↗

File Size:

246.12 KB

Description:

2.5v / 3.3v 1:4 differential input to lvds fanout buffer / translator.

NB3L8504S Features

* Four Differential LVDS Outputs

* Each Differential Output has OE Control

* 700 MHz Maximum Output Frequency

* 660 ps Max Output Rise and Fall Times, LVCMOS

* Translates Differential Input to LVDS Levels

* Additive Phase Jitter RMS: < 100 fs Typical

NB3L8504S General Description

The NB3L8504S is a differential 1:4 LVDS fanout buffer/translator with OE control for each differential output. The differential inputs which can be driven by either a differential or single

*ended input, can accept various logic level standards such as LVPECL, LVDS, HSTL, HCSL and SSTL. Thes.
