NB7V32M

Clock Divider

NB7V32M Features

* Maximum Input Clock Frequency > 10 GHz, typical

* Random Clock Jitter < 0.8 ps RMS

* 200 ps Typical Propagation Delay

* 35 ps Typical Rise and Fall Times

* Differential CML Outputs, 400 mV Peak

* to

* Peak, Typical

* Operating Range: VCC

NB7V32M General Description

The NB7V32M is a differential B2 Clock divider with asynchronous reset. The differential Clock inputs incorporate internal 50 W termination resistors and will accept LVPECL, CML and LVDS logic levels. The NB7V32M produces a B2 output copy of an input Clock operating up to 10 GHz with minimal jitter..

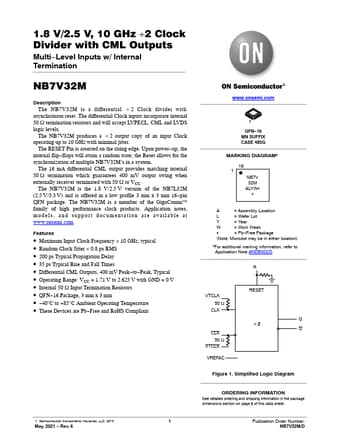

NB7V32M Datasheet (231.42 KB)
