NB7V52M

1.8V / 2.5V Differential D Flip-Flop

NB7V52M General Description

The NB7V52M is a 10 GHz differential D flip

*flop with a differential asynchronous Reset. The differential D/D, CLK/CLK and R/R inputs incorporate dual internal 50 W termination resistors and will accept LVPECL, CML, LVDS logic levels. When Clock transitions from logic Low to High, Data will .

NB7V52M Datasheet (83.68 KB)

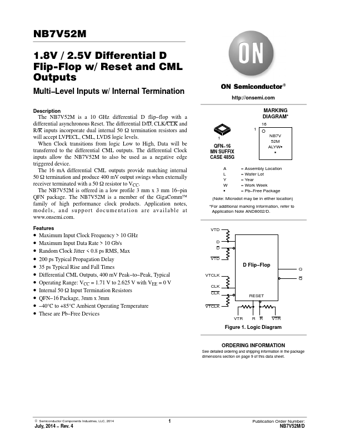

Preview of NB7V52M PDF

Datasheet Details

Part number:

NB7V52M

Manufacturer:

ON Semiconductor ↗

File Size:

83.68 KB

Description:

1.8v / 2.5v differential d flip-flop.
