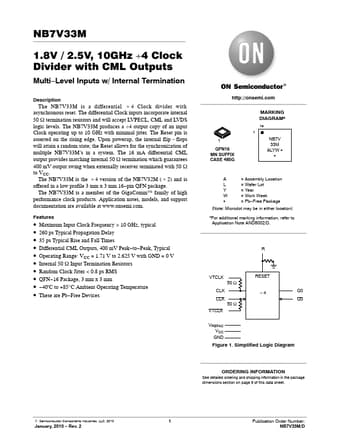

Description
The NB7V33M is a differential B4 Clock divider with
asynchronous reset.The differential Clock inputs incorporate internal 50 W termination resistors and will accept LVPECL, CML and LVDS logic levels.The NB7V33M produces a ÷4 output copy of an input Clock operating up to 10 GHz with minimal jitter.The Reset pin is asserted on the rising edge.Upon powerup, the internal flip
flops will attain a random state; the Reset allows for the synchronization of multiple NB7V33M’s in a system.
Features
- Maximum Input Clock Frequency > 10 GHz, typical.
- 260 ps Typical Propagation Delay.
- 35 ps Typical Rise and Fall Times.
- Differential CML Outputs, 400 mV Peak.
- to.
- Peak, Typical.
- Operating Range: VCC = 1.71 V to 2.625 V with GND = 0 V.
- Internal 50 W Input Termination Resistors.
- Random Clock Jitter < 0.8 ps RMS.
- QFN.
- 16 Package, 3 mm x 3 mm.
- 40ºC to +85°C Ambient Operating Temperature.
