NCP1013 Datasheet - ON Semiconductor

Self-Supplied Monolithic Switcher

NCP1013 Features

* Built

* in 700 V MOSFET with Typical RDSon of 11 W and 22 W

* Large Creepage Distance Between High

* Voltage Pins

* Current

* Mode Fixed Frequency Operation: 65 kHz

* 100 kHz

* 130 kHz

* Skip

* Cycle Operation at Low Peak Curr

NCP1013 General Description

Pin No. (SOT *223) Pin No. (PDIP *7) Pin Name 1 1 VCC * 2 NC * 3 GND 2 4 FB 3 5 Drain * * * * 7 GND 4 8 GND Function Powers the Internal Circuitry * The IC Ground Feedback Signal Input Drain Connection .

NCP1013 Datasheet (792.12 KB)

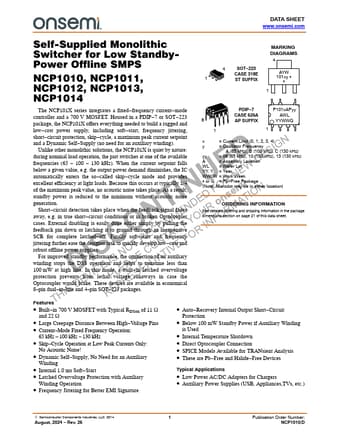

Preview of NCP1013 PDF

Datasheet Details

Part number:

NCP1013

Manufacturer:

ON Semiconductor ↗

File Size:

792.12 KB

Description:

Self-supplied monolithic switcher.
DATA SHEET www.onsemi.com Self-Supplied Monolithic Switcher for Low StandbyPower Offline SMPS NCP1010, NCP1011, NCP1012, NCP1013, NCP1014 The NCP101X.
