NCP330

Soft-Start Controlled Load Switch

NCP330 Features

* 1.8 V

* 5.5 V Operating Range

* 30 mW N

* MOSFET

* DC Current Up to 3 A

* Peak Current Up to 5 A

* Built

* in Soft

* Start 2 ms

* Reverse Voltage Protection

* Active High with Integrated Bridge

* Compliance to IEC61000

* 4

* 2 (

NCP330 General Description

Pin Name Pin Number Type IN 1 POWER GND EN OUT 2 POWER 3 INPUT 4 OUTPUT PAD1 POWER Description Power

*switch input voltage; connect a 1 mF or greater ceramic capacitor from IN to GND as close as possible to the IC. Ground connection; Enable input, logic high turns on power swi.

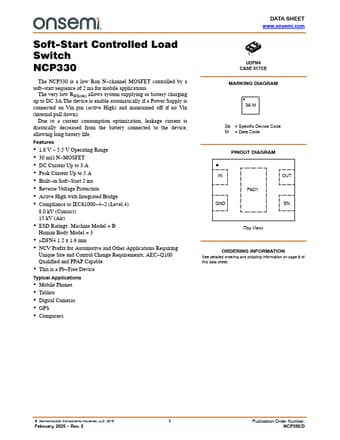

NCP330 Datasheet (375.68 KB)

Preview of NCP330 PDF

Datasheet Details

Part number:

NCP330

Manufacturer:

ON Semiconductor ↗

File Size:

375.68 KB

Description:

Soft-start controlled load switch.
Soft-Start Controlled Load Switch NCP330 The NCP330 is a low Ron N

*channel MOSFET controlled by a soft

*start sequence of 2 ms for mobi.
