NCP3334A

Low Dropout Regulator

NCP3334A Features

* ultra

* low quiescent current and noise which encompasses all necessary characteristics demanded by today’s consumer electronics. This unique device is guaranteed to be stable without a minimum load current requirement and stable with any type of capacitor as small as 1.0 mF. The NCP3334A offe

NCP3334A General Description

Pin No. Pin Name Description 1, 2 Vout Regulated output voltage. Bypass to ground with Cout w 1.0 mF. 3 FB Adjustable pin; reference voltage = 1.178 V. 4 NC Not Connected 5 GND Power Supply Ground 6 SD Shutdown pin. Pulling this pin Low turns on the regulator 7, 8 Vin Power Supply Input Vo.

NCP3334A Datasheet (155.10 KB)

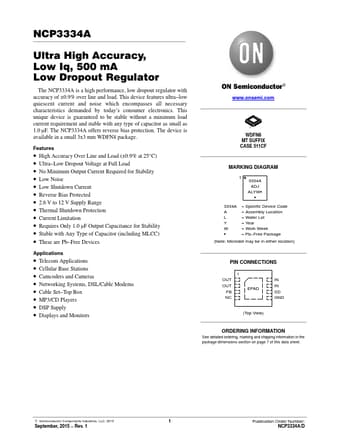

Preview of NCP3334A PDF

Datasheet Details

Part number:

NCP3334A

Manufacturer:

ON Semiconductor ↗

File Size:

155.10 KB

Description:

Low dropout regulator.
NCP3334A Ultra High Accuracy, Low Iq, 500 mA Low Dropout Regulator The NCP3334A is a high performance, low dropout regulator with accuracy of ±0.9% o.
