NCP3334

Adjustable Low Dropout Regulator

NCP3334 Features

* required by today’s consumer electronics. This unique device is guaranteed to be stable without a minimum load current requirement and stable with any type of capacitor as small as 1.0 mF. The NCP3334 offers reverse bias protection. Features

* High Accuracy Over Line and Load (±0.9% at 25°C)

NCP3334 General Description

Pin No. Pin Name Description 1 GND Power Supply Ground 2 SD Shutdown pin. When not in use, this pin should be connected to the input pin. 3, 4 IN Power Supply Input Voltage 5, 6 OUT Regulated output voltage. Bypass to ground with Cout w 1.0 mF. 7 FB Feedback pin; reference voltage = 1.25.

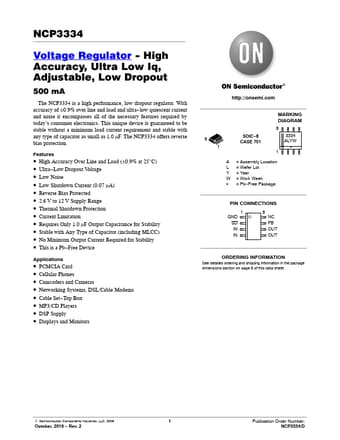

NCP3334 Datasheet (126.72 KB)

Preview of NCP3334 PDF

Datasheet Details

Part number:

NCP3334

Manufacturer:

ON Semiconductor ↗

File Size:

126.72 KB

Description:

Adjustable low dropout regulator.
NCP3334 Voltage Regulator - High Accuracy, Ultra Low Iq, Adjustable, Low Dropout 500 mA The NCP3334 is a high performance, low dropout regulator. Wit.
