NCV4294C

Low Drop Voltage Regulator

NCV4294C Features

* Output Voltage Options: 3.3 V, 5.0 V

* Output Voltage Accuracy: ±4.0%

* Output Current: up to 30 mA

* Low Quiescent Current (typ. 160 mA @ 1 mA)

* Low Dropout Voltage (typ. 65 mV @ 20 mA)

* Wide Input Voltage Operating Range: up to 45 V

* Pro

NCV4294C General Description

Pin No. TSOP

*5 Pin Name Description 1 NC Not connected. (Not internally bonded) 2 GND Power Supply Ground. 3 Vin Unregulated Positive Power Supply Input. Connect 0.1 mF capacitor to ground. 4 Vout Regulated Positive Output Voltage. Connect 2.2 mF capacitor with ESR < 7 W to gr.

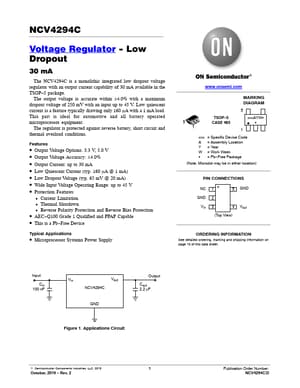

NCV4294C Datasheet (206.70 KB)

Preview of NCV4294C PDF

Datasheet Details

Part number:

NCV4294C

Manufacturer:

ON Semiconductor ↗

File Size:

206.70 KB

Description:

Low drop voltage regulator.
NCV4294C Voltage Regulator - Low Dropout 30 mA The NCV4294C is a monolithic integrated low dropout voltage regulator with an output current capabilit.
