NCV4290 - 450mA Low Drop Voltage Regulator

ON Semiconductor

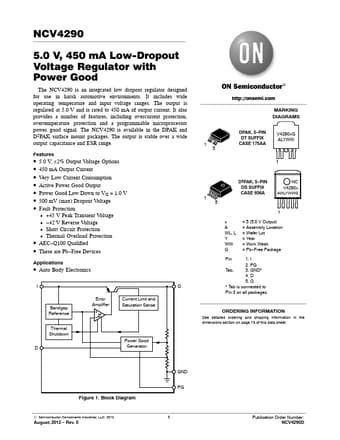

NCV4290 Datasheet Preview — Preview of NCV4290 PDF

Datasheet Details

Part number	NCV4290
Manufacturer	ON Semiconductor ↗
File Size	158.23 KB
Description	450mA Low Drop Voltage Regulator
Datasheet	NCV4290-ONSemiconductor.pdf

NCV4290 Product details

Description

Pin # ÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑ1 ÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑ2 ÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑ3, Tab ÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑ4 ÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑ5 Symbol I PG GND D Q Description Input; Battery Supply Input Voltage.Bypass to ground with a ceramic capacitor.Power Good Output; Open Collector Active Power Good (accurate when VQ > 1.0 V).Ground; Pin 3 internally connected to tab.Power Good Delay; timing capacitor to GND f

Features

including overcurrent protection, overtemperature protection and a programmable microprocessor power good signal. The NCV4290 is available in the DPAK and D2PAK surface mount packages. The output is stable over a wide output capacitance and ESR range. Features.
5.0 V, ±2% Output Voltage Options.
450 mA Output Current.
Very Low Current Consumption.
Active Power Good Output.
Power Good Low Down to VQ = 1.0 V.
500 mV (max) Dropout Voltage.
