NCV6323 - 2A Synchronous Buck Converter

ON Semiconductor

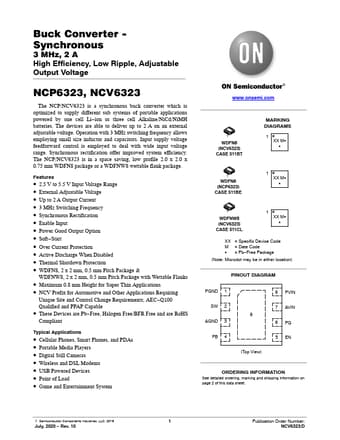

NCV6323 Datasheet Preview — Preview of NCV6323 PDF

Datasheet Details

Part number	NCV6323
Manufacturer	ON Semiconductor ↗
File Size	0.96 MB
Description	2A Synchronous Buck Converter
Datasheet	NCV6323-ONSemiconductor.pdf

NCV6323 Product details

Description

Pin Name 1 PGND 2 SW 3 AGND 4 FB 5 EN 6 PG Type Power Ground Power Output Analog Ground Analog Input Digital Input Digital Output 7 AVIN Analog Input 8 PVIN Power Input 9 PAD Exposed Pad Description Power Ground for power, analog blocks.Must be connected to the system ground.Switch Power pin connects power transistors to one end of the inductor.Analog Ground analog and digital blocks.Must be connected to the system ground.Feedback Voltage from the buck converter

Features

2.5 V to 5.5 V Input Voltage Range.
External Adjustable Voltage.
Up to 2 A Output Current.
3 MHz Switching Frequency.
Synchronous Rectification.
Enable Input.
Power Good Output Option.
Soft.
Start.
Over Current Protection.
Active Discharge When Disabled.
Thermal Shutdown Protection.
WDFN8, 2 x 2 mm, 0.5 mm Pitch Package & WDFNW8, 2 x 2 mm, 0.5 mm Pitch Package with Wettable Flanks.
