NCV6334B - 2A Synchronous Buck Converter

ON Semiconductor

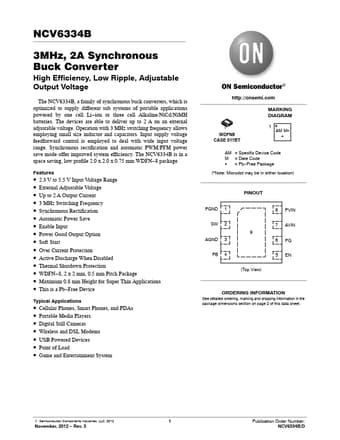

NCV6334B Datasheet Preview — Preview of NCV6334B PDF

Datasheet Details

Part number	NCV6334B
Manufacturer	ON Semiconductor ↗
File Size	248.26 KB
Description	2A Synchronous Buck Converter
Datasheet	NCV6334B-ONSemiconductor.pdf

NCV6334B Product details

Description

Pin Name 1 PGND 2 SW 3 AGND 4 FB 5 EN 6 PG Type Power Ground Power Output Analog Ground Analog Input Digital Input Digital Output 7 AVIN Analog Input 8 PVIN Power Input 9 PAD Exposed Pad Description Power Ground for power, analog blocks.Must be connected to the system ground.Switch Power pin connects power transistors to one end of the inductor.Analog Ground analog and digital blocks.Must be connected to the system ground.Feedback Voltage from the buck converter output.This is the inp

Features

2.3 V to 5.5 V Input Voltage Range.
External Adjustable Voltage.
Up to 2 A Output Current.
3 MHz Switching Frequency.
Synchronous Rectification.
Automatic Power Save.
Enable Input.
Power Good Output Option.
Soft Start.
Over Current Protection.
Active Discharge When Disabled.
Thermal Shutdown Protection.
WDFN.
8, 2 x 2 mm, 0.5 mm Pitch Package.
Maximum 0.8 mm Heigh.
