NCV6323F - PWM Synchronous Buck Converter

ON Semiconductor

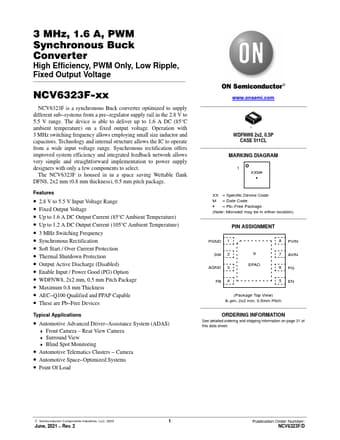

NCV6323F Datasheet Preview — Preview of NCV6323F PDF

Datasheet Details

Part number	NCV6323F
Manufacturer	ON Semiconductor ↗
File Size	8.10 MB
Description	PWM Synchronous Buck Converter
Datasheet	NCV6323F-ONSemiconductor.pdf

NCV6323F Product details

Description

PGND 1 SW 2 AGND 3 9 EPAD 8 PVIN 7 AVIN 6 PG FB 4 5 EN Figure 3. Pin Out (Top View) PIN FUNCTION DESCRIPTION Pin No.Name Type 1 PGND Power Ground 2 SW Power Output 3 AGND Analog Ground 4 FB Analog Input 5 EN Digital Input 6 PG Open Drain 7 AVIN Analog Input 8 PVIN Analog Input 9 EPAD Analog Ground Description Switch Ground.This pin is the power ground and carries the high switching current.High quality ground must be provided to prevent noise spikes.To avoid

Features

2.8 V to 5.5 V Input Voltage Range.
Fixed Output Voltage.
Up to 1.6 A DC Output Current (85°C Ambient Temperature).
Up to 1.2 A DC Output Current (105°C Ambient Temperature).
3 MHz Switching Frequency.
Synchronous Rectification.
Soft Start / Over Current Protection.
Thermal Shutdown Protection.
Output Active Discharge (Disabled).
Enable Input / Power Good (PG) Option.
WDFNW8, 2x2 mm, 0.5 mm Pitch.
